Vendor: Veriest Solutions Ltd. Category: Register File

Register Indirect RAM Access

The Veriest Register Indirect RAM Access Design IP provides a bridge between the embedded AMBA AHB bus and a configurable number …

Overview

The Veriest Register Indirect RAM Access Design IP provides a bridge between the embedded AMBA AHB bus and a configurable number of embedded SRAM devices for test, initialization and other low bandwidth purposes. The Veriest Register Indirect RAM Access is ideal for IP developers to provide access to shared RAMs in which the CPU needs to have limited access whereas another RAM client has priority access. After a simple register configuration setup by the CPU, the RAMs can be accessed for read and write through the AHB slave interface.


Key features

  • Easy integraton
  • AMBA AHB 3.0 Compatible
  • AHB Reads, Writes
  • Burst Types: Single, INCR, INCR4, INCR18, INCR16
  • Transfer size 32-bit aligned only
  • Configurable address bus width (32-bit / 64-bit)
  • Configurable data bus width (32-bit / 64-bit / 128-bit)
  • Configurable number of RAMs to access
  • Configurable RAM width
  • Low latency

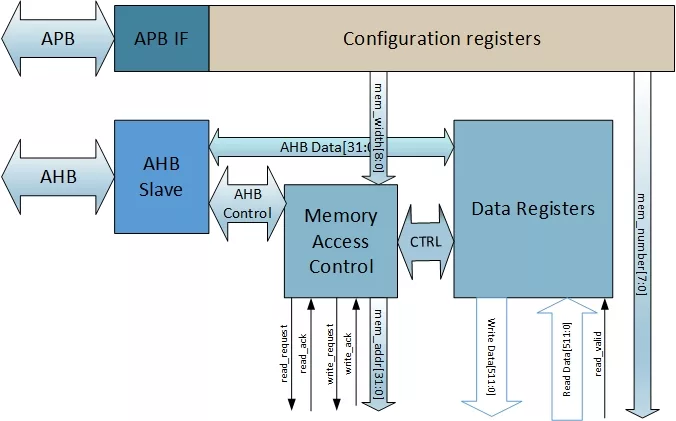

Block Diagram

VV1700 block diagram

Benefits

  • Low Gate Count
  • Low Power Consumption
  • Fully Verified
  • Spyglass Lint Validated
  • Standards Compliant

Applications

  • General System on Chip Use

What’s Included?

  • Synthesizable Verilog RTL
  • Verilog test bench and test cases
  • Detailed block diagram and technical documents

Specifications

Identity

Part Number
VV1700
Vendor
Veriest Solutions Ltd.
Type
Silicon IP

Provider
