Vendor: Truechip Solutions Category: Ethernet

Preemption Verification IP

The Preemption Verification IP provides an effective & efficient way to verify the components interfacing with Preemption interfa…

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

The Preemption Verification IP provides an effective & efficient way to verify the components interfacing with Preemption interface of an IP or SoC. The Preemption VIP is fully compliant with IEEE 802.3-2018 CL-99 specification. This VIP is lightweight with an easy plug -and- play interface so that there is no hit on the design cycle time.

Key features

  • Provides Ethernet fully compliant to 802.3-2018 supporting all media independent interfaces for (1/10/25/40/50/100/200/400/800 G)
  • Provides Preemption as per IEEE 802.3-2018 CL99 specification
    • Supports attachment of eMAC and pMAC with the aid of respective PLS interface
    • Supports priority-based traffic split into eMAC and pMAC
    • StartUp verify-respond operation is supported with user option to disable
    • Retry of verify-respond operation is supported up until verify Limit
    • Supports min IPG while Preemption is happening
    • Capable of mCRC calculation
    • Supports packet deferring in case of carrier indication signal with pass through to eMAC and pMAC
    • Supports Preemptable packet reassembly when received in fragments
    • Supports integrity check of fragments at MAC merge level
    • Supports priority of each packet control at sequence/test level
  • Supports clock data recovery(CDR).
  • Supports test pattern generation and checking.
  • Supports Management data Input/output registers.
  • Supports full-duplex operation.
  • Callback support in all Layers to provide user control.
  • Rich set of configuration and parameters.
  • Supports Dynamic as well as Static Error Injection scenarios.
  • Built-in Coverage analysis.
  • Graphical analyzer to show transactions for easy debugging

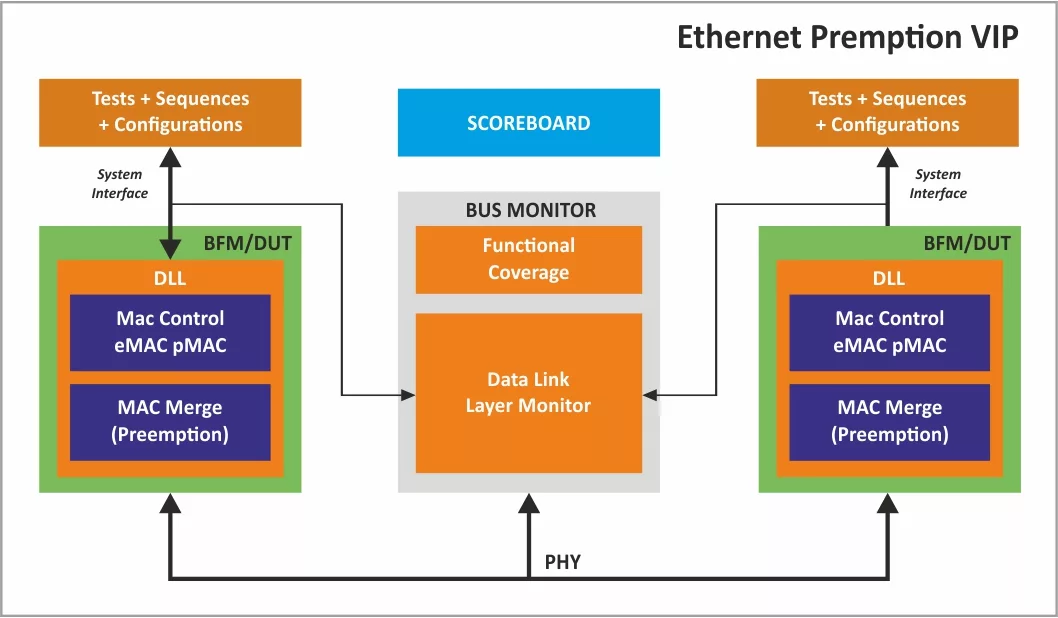

Block Diagram

Preemption / PFC block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/ VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity examples for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solutions and easy integration in IP and SoC environment

What’s Included?

  • Deliverables MAC Merge(Preemption) BFM's for
    • MAC Merge layer
    • MAC Control layer
    • MAC layer
  • Mac monitors and scoreboard
  • Test environment and Test Suite-
    • Basic and Directed Protocol Tests
    • Random Tests
    • Error Scenario Tests
    • Assertions & Cover Point Tests
    • User Test Suite
  • Integration Guide, User Manual, and Release Note
  • GUI analyzer to view simulation packet Flow​

Specifications

Identity

Part Number
Preemption / PFC
Vendor
Truechip Solutions
Type
Verification IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Truechip Solutions
