What is Power on Reset 1.2V?
Power on Reset 1.2V is a Power On Reset (POR) IP core from NTLab listed on Semi IP Hub. It is listed with support for smic Pre-Silicon.
Vendor:
NTLab
Category:
Power On Reset (POR)
Power on Reset 1.2V
055SMIC_POR_04 provides a reset signal to the chip when supply voltage reach required level.
Overview
055SMIC_POR_04 provides a reset signal to the chip when supply voltage reach required level. POR generates reset signal depending of the level supply voltage with hysteresis.
Key features
- SMIC 55nm LL technology
- Noise protected
- Low current consumption (~1uA)

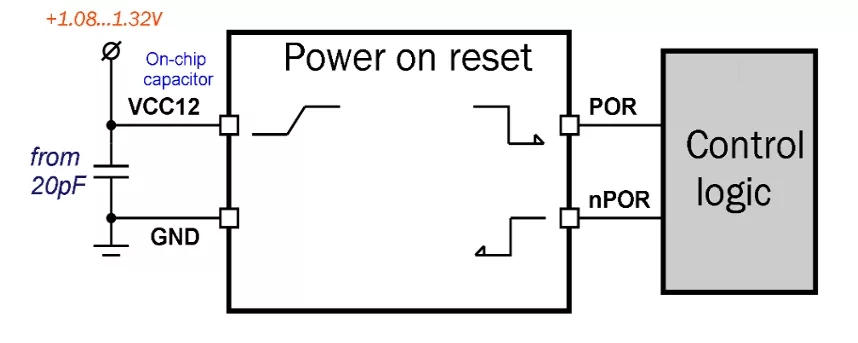

Block Diagram
055SMIC_POR_04 block diagram
Applications
- Core voltage low battery indication
- Supply voltage sensitive circuits
- Battery-Powered equipment
- Power solutions
What’s Included?
- Schematic or NetList
- Abstract view (.lef and .lib files)
- Layout (optional)
- Behavioral model (for functional verification)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| SMIC | 55nm | LL | Pre-Silicon |
Specifications
Identity
Part Number
055SMIC_POR_04
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
