Vendor: NTLab Category: PLL

PLL Lock detector with low current consumption and high accuracy

The lock detector monitors the current status of PLL by comparing the phase difference of VCO divided signal and reference oscill…

Contact Provider Request Datasheet

Overview

The lock detector monitors the current status of PLL by comparing the phase difference of VCO divided signal and reference oscillator signal with required value. It is available to set the lock monitoring period and the lock detector accuracy (9.5...20.8 ns).
The block is fabricated on iHP SiGe BiCMOS 0.25 um (SGB25V) technology.

Key features

  • iHP SGB25V
  • Low current consumption
  • High accuracy
  • Portable to other technologies (upon request)

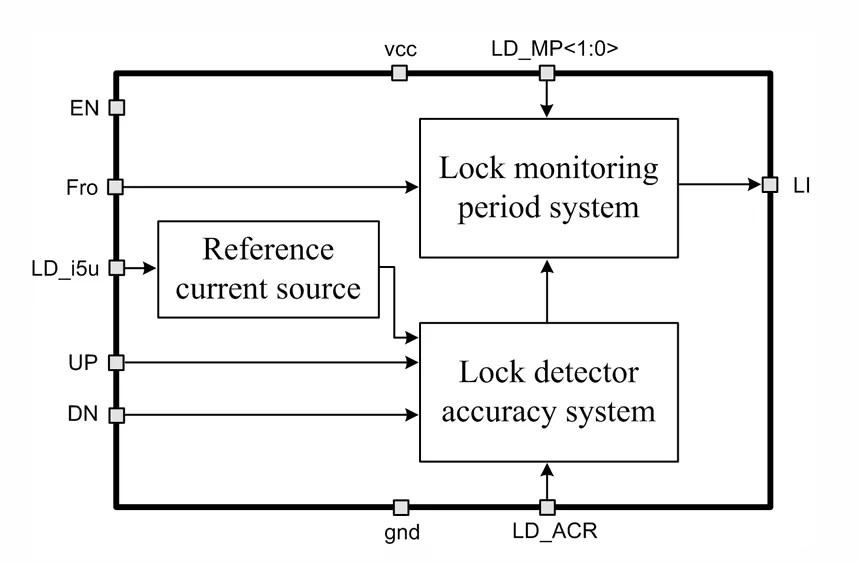

Block Diagram

250iHP_LD_01 block diagram

Applications

  • Phase-locked loop synthesizer

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Specifications

Identity

Part Number
250iHP_LD_01
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
Contact NTLab
