What is PLL Lock detector with low current consumption and high accuracy?
PLL Lock detector with low current consumption and high accuracy is a PLL IP core from NTLab listed on Semi IP Hub.
Vendor:
NTLab
Category:
PLL
PLL Lock detector with low current consumption and high accuracy
The lock detector monitors the current status of PLL by comparing the phase difference of VCO divided signal and reference oscill…
Overview
The lock detector monitors the current status of PLL by comparing the phase difference of VCO divided signal and reference oscillator signal with required value. It is available to set the lock monitoring period and the lock detector accuracy (6...8.7 ns).
Key features
- AMS BiCMOS 0.35 um technology
- Low current consumption
- High accuracy
- Portable to other technologies (upon request)
Block Diagram

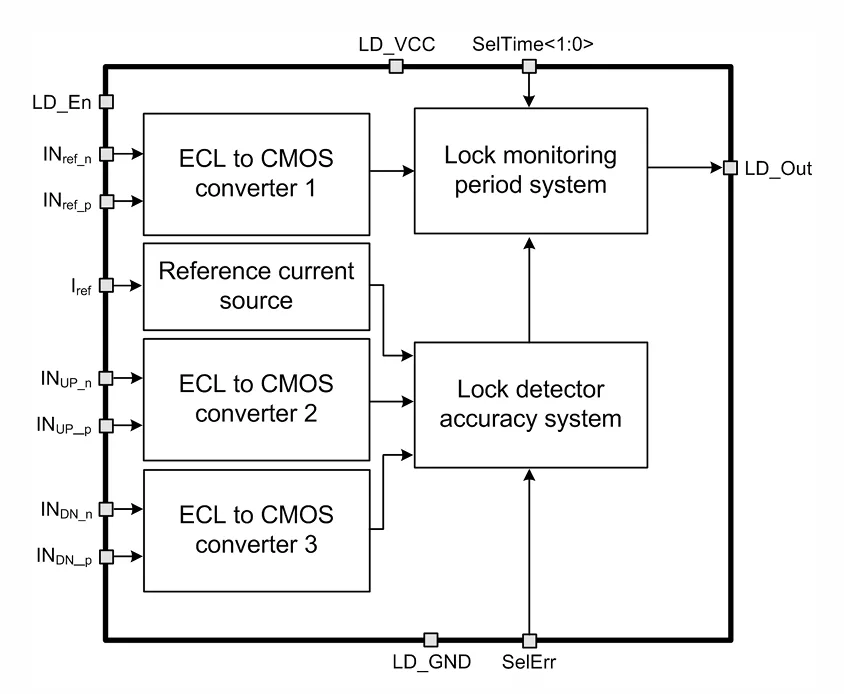

350AMS_LD_02 block diagram
Applications
- Phase-locked loop synthesizer
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
