What is PLL 24.84 MHz phase-frequency detector with charge pump?
PLL 24.84 MHz phase-frequency detector with charge pump is a PLL IP core from NTLab listed on Semi IP Hub.
Vendor:
NTLab
Category:
PLL
PLL 24.84 MHz phase-frequency detector with charge pump
Phase-frequency detector (PFD) forms control signal for VCO tuning.
Overview
Phase-frequency detector (PFD) forms control signal for VCO tuning. PFD compares phases of divided VCO signal and divided reference oscillator signal and detects phase difference. Charge pump generates pulses for loop filter.
Reference frequency 24.84 MHz.
Output current is 19.1...96.3 uA.
Key features
- AMS BiCMOS 0.35 um technology
- Input signals with low amplitude
- Low disbalance of output current
- Portable to other technologies (upon request)

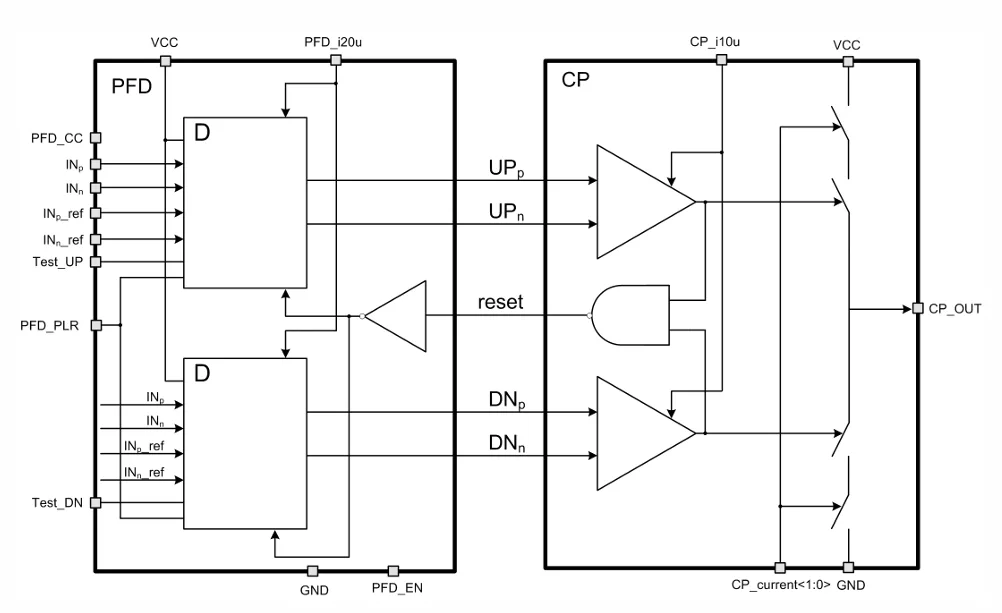

Block Diagram
350AMS_PFD_02 block diagram
Applications
- Phase-locked loop synthesizer
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Specifications
Identity
Part Number
350AMS_PFD_02
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
