Vendor: NTLab Category: PLL

Phased-locked loop 120 to 950 MHz

PLL is an automatic control system adjusting controlled oscillator frequency to be equal to reference oscillator frequency multip…

Contact Provider Request Datasheet

Overview

PLL is an automatic control system adjusting controlled oscillator frequency to be equal to reference oscillator frequency multiplied by a given integer. Frequency adjustment is carried out by using negative feedback. A phase detector compares a controlled oscillator output with a reference signal. The result is a charge pump current output that supplies external feedback filter and converted to a voltage for controlled oscillator adjustment. Switched capacitors sections is used to frequency-shift keying in a transmitting mode Clock frequency divider is used to generate a signal with frequency equal to reference frequency divided into integer number.
The block is fabricated on iHP SiGe BiCMOS 0.25 um (SGB25V) technology.

Key features

  • iHP SGB25V
  • Wide frequency range (120…950 MHz)
  • Operating frequency selection using external components
  • Built-in switched capacitor sections for VCO frequency adjustment
  • Low noise figure
  • High lock detector accuracy
  • Charge pump low output current disbalance
  • Built-in reference frequency oscillator
  • Programmable clock frequency divider
  • Portable to other technologies (upon request)

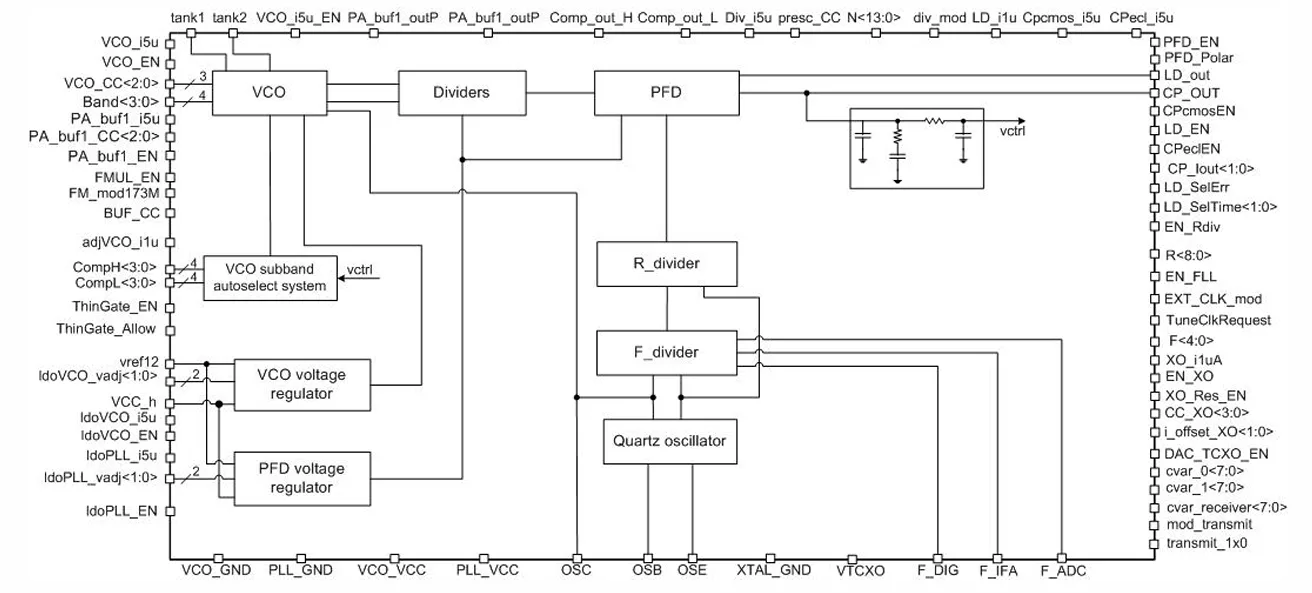

Block Diagram

250iHP_PLL_02 block diagram

Applications

  • Portable transmitters
  • Portable transceiver

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Specifications

Identity

Part Number
250iHP_PLL_02
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
Contact NTLab
