Vendor: NTLab Category: PLL

Phase-locked loop system 2.8 to 3.3 GHz

PLL is an automatic control system adjusting controlled oscillator frequency to be equal to reference oscillator frequency multip…

Contact Provider Request Datasheet
SMIC 180nm G Silicon Proven View all specifications

Overview

PLL is an automatic control system adjusting controlled oscillator frequency to be equal to reference oscillator frequency multiplied by a given integer. Frequency adjustment is carried out by using negative feedback. A phase detector compares a controlled oscillator output with a reference signal. The result is a charge pump current output that supplies external feedback filter and converted to a voltage for controlled oscillator adjustment.
Clock divider is used to generate signals with specified frequency. Delta-sigma modulator makes it possible to operate with reference oscillator of different frequency.
The block is fabricated on SMIC CMOS 0.18 um technology.

Key features

  • SMIC CMOS 0.18 um
  • Wide frequency range (2.8…3.3 GHz)
  • Built-in switched capacitors sections for VCO frequency adjustment
  • Low noise figure
  • High lock detector accuracy
  • Charge pump low output current disbalance
  • Low current consumption
  • Low power consumption
  • No external components required
  • Portable to other technologies (upon request)

Block Diagram

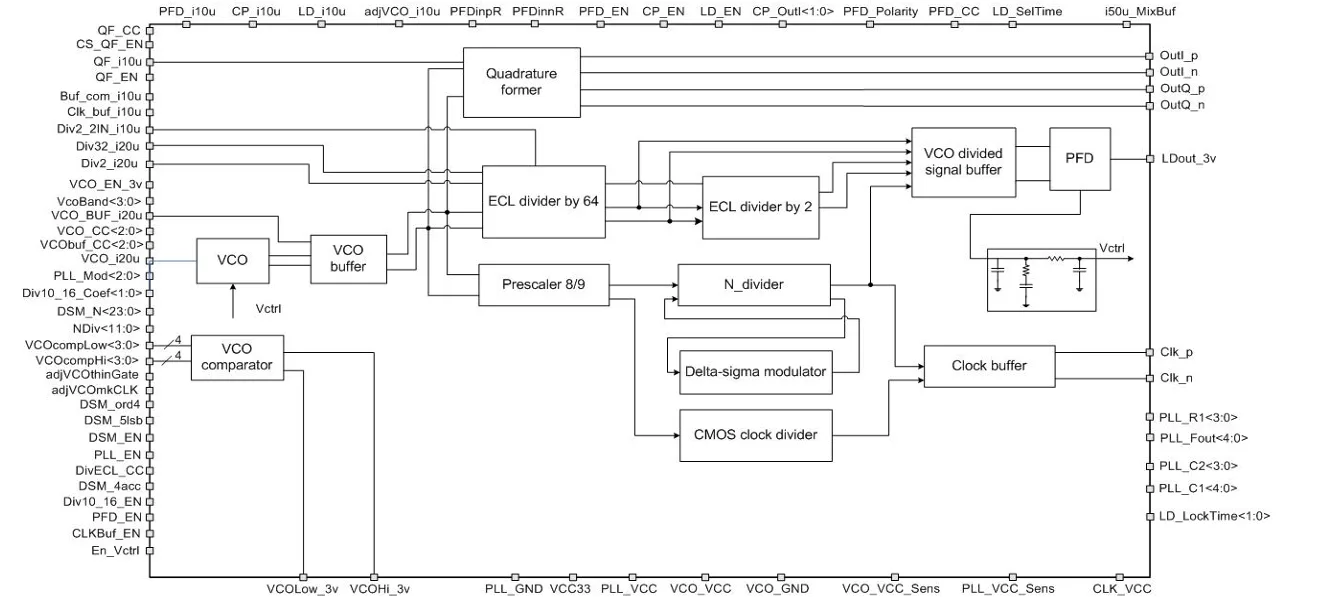

180SMIC_PLL_02 block diagram

Applications

  • Portable transmitters
  • Portable transceiver

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
SMIC 180nm G Silicon Proven

Specifications

Identity

Part Number
180SMIC_PLL_02
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
Contact NTLab
