Vendor: NTLab Category: PLL

Phase-locked loop frequency synthesizer

PLL is an automatic control system adjusting controlled oscillator frequency to be equal to reference oscillator frequency multip…

Contact Provider Request Datasheet
UMC 65nm Silicon Proven View all specifications

Overview

PLL is an automatic control system adjusting controlled oscillator frequency to be equal to reference oscillator frequency multiplied by a given integer ratio. Frequency adjustment is carried out by using negative feedback. A phase detector compares a controlled oscillator output with a reference signal. The result is a charge pump current output that supplies feedback low-pass filter and converted to a voltage for controlled oscillator adjustment.
Clock divider is used to generate signals with specified frequency.
This block designed for CMOS UMC 65 nm technology.

Key features

  • CMOS UMC 65 nm
  • Integer-N frequency synthesizer with good phase noise performance
  • Guaranteed frequency range 550…750 MHz
  • Wide continuous loop frequency divider ratio range (16..2047 with step 1) allow to cover frequency range using different reference frequency
  • Wide continuous reference frequency divider ratio range (1..31 with step 1) allow to use high reference frequency or reach high frequency resolution
  • Integrated lock detector circuit with high accuracy
  • Integrated loop filter with adjustment ability
  • No external components required
  • Low power consumption
  • Portable to other technologies (upon request)

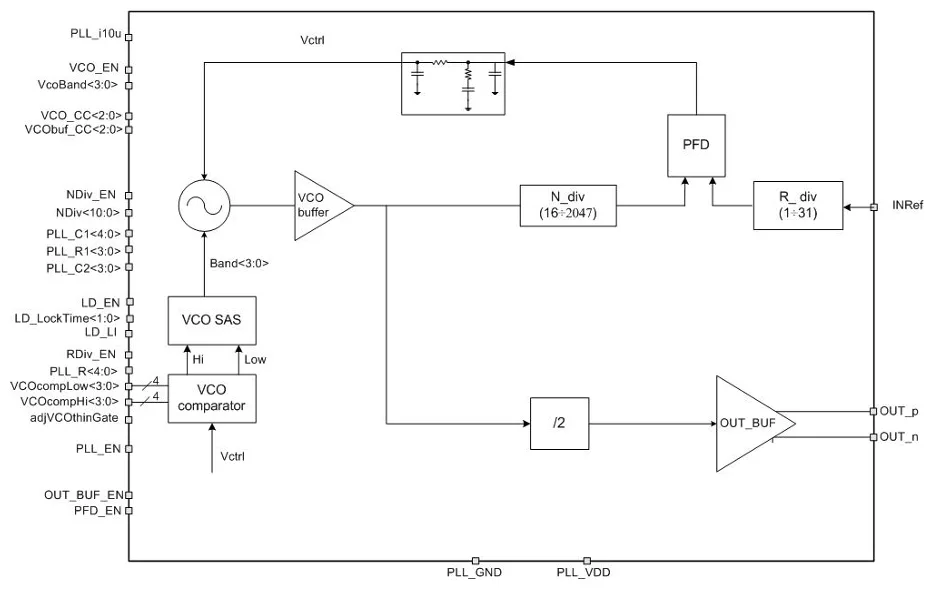

Block Diagram

065UMC_PLL_01 block diagram

Applications

  • Portable transmitters and transceivers

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
UMC 65nm 65nm 650 nm Silicon Proven

Specifications

Identity

Part Number
065UMC_PLL_01
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
Contact NTLab
