The IP is a PGA based on SMIC 110nm process.
Overview
The IP is a PGA based on SMIC 110nm process. It consists of 1 stages and a separate feedback offset cancellation DAC is used for de-offset removal.
Key features
- Process: SMIC 110nm 1.8v/3.3v 1P6M process
- Gain x1 ~ x128
- Power Supply: Analog power supply 2.6V ~ 3V ~3.6V, Digital power supply 1.62V~ 1.8V ~ 1.96V
- Operated Ambient Temperature: Ta = -40 ~ 85°C
- Operated Junction Temperature: Tj = -40~125°C

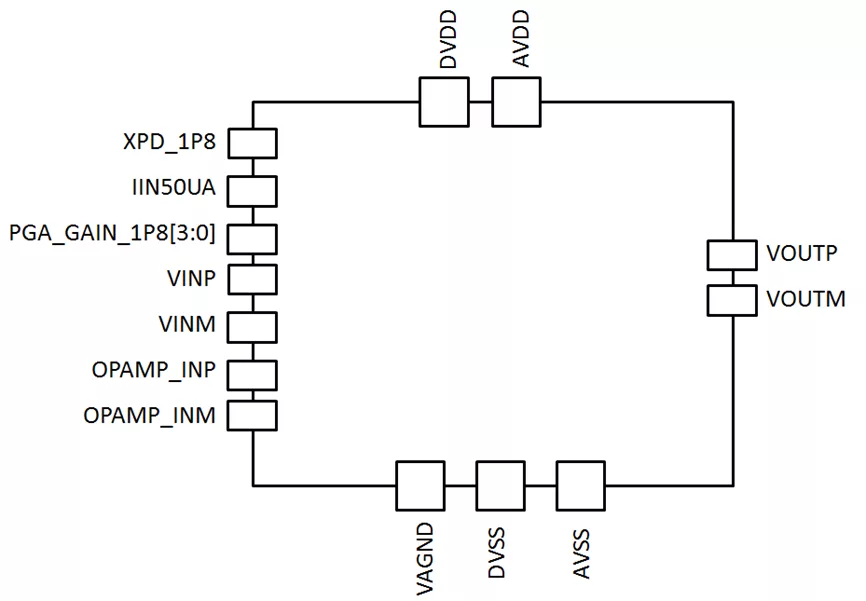

Block Diagram
PGA 4bit block diagram
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| SMIC | 110nm | G | Available on request |
Specifications
Identity
Part Number
PGA 4bit
Vendor
VEGA Semiconductor
Type
Silicon IP
Provider
HQ:
Taiwan
