PCIe Gen5/6 PHY IP

The PCIe PHY IP supports PCIe Gen 4.0, 5.0, and 6.0, and is validated through interoperability testing in collaboration with glob…

Contact Provider Request Datasheet

Overview

The PCIe PHY IP supports PCIe Gen 4.0, 5.0, and 6.0, and is validated through interoperability testing in collaboration with global partners,

Built on advanced FinFET process nodes, the IPs incorporate DSP-based equalization, low latency, and industry-proven interoperability—making them ideal for PCIe 6.0 and CXL-ready systems.

Key features

  • Best-in-class Power / Performance / Area competitiveness
  • Compliant to PCIe 5.0/6.x Base specification
  • Supports lane configurations according to the customer’s demands
  • Supports data rates of 2.5GT/s, 5.0GT/s, 8.0GT/s, 16GT/s, 32GT/s and 64GT/s (PAM4)
  • Supports power-down modes of P0, P1, P2, P1.ss and P1.cpm
  • Supports fully adaptive channel equalization
  • Built-in self-test feature producing and checking PRBS random pattern

Block Diagram

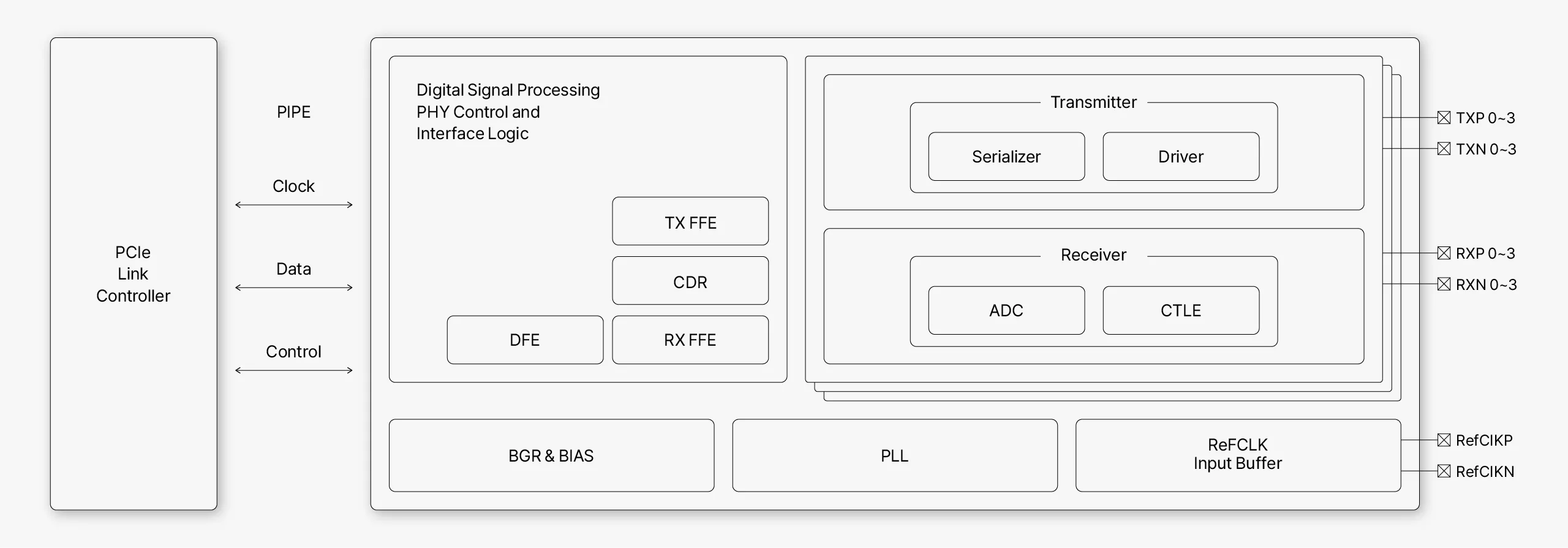

PCIe 5.0/6.0 PHY IP block diagram

Specifications

Identity

Part Number
PCIe 5.0/6.0 PHY IP
Vendor
Qualitas Semiconductor
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Qualitas Semiconductor
HQ: South Korea
Contact Qualitas Semiconductor
