Overview

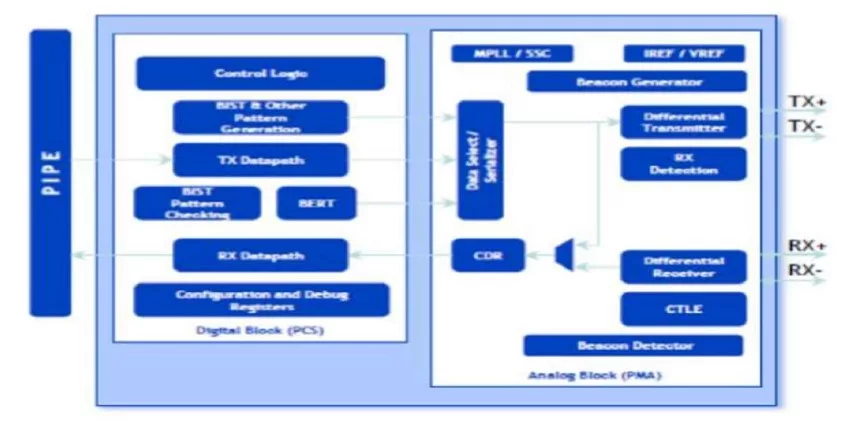

The PCIe 2.0 PHY IP presents a configurable physical layer (PHY) IP solution tailored for Consumer Electronics. It combines mixed signal circuits to facilitate data transfer speeds of both 2.5GT/s and 5.0GT/s, adhering to PCIe 2.0 basic standards. Comprising two layers, namely the Physical Media Attachment (PMA) layer and the Physical Coding Sublayer (PCS), it seamlessly interfaces with the PCIe 2.0 MAC layer through the standard PIPE-3.0 interface.
Designed for minimal power consumption and compact device footprint, the PCIe 2.0 PHY IP transceiver maintains excellent performance and data throughput. It incorporates an on-chip physical transceiver solution featuring ESD protection, an integrated self-test module with built-in jitter injection, and a dynamic equalization circuit ensuring comprehensive support for high-performance architectures.
The PCIe 2.0 PHY IP presents a configurable physical layer (PHY) IP solution tailored for Consumer Electronics. It combines mixed signal circuits to facilitate data transfer speeds of both 2.5GT/s and 5.0GT/s, adhering to PCIe 2.0 basic standards. Comprising two layers, namely the Physical Media Attachment (PMA) layer and the Physical Coding Sublayer (PCS), it seamlessly interfaces with the PCIe 2.0 MAC layer through the standard PIPE-3.0 interface.
Designed for minimal power consumption and compact device footprint, the PCIe 2.0 PHY IP transceiver maintains excellent performance and data throughput. It incorporates an on-chip physical transceiver solution featuring ESD protection, an integrated self-test module with built-in jitter injection, and a dynamic equalization circuit ensuring comprehensive support for high-performance architectures.
Learn more about Multi-Protocol PHY IP core
Morgan State University (MSU) recently received an Apple Innovation Grant, designed to support engineering schools as they develop their silicon and hardware technologies. The New Silicon Initiative (NSI) is designed to inspire and prepare students for careers in hardware engineering, computer architecture, and silicon chip design.
Increasingly, more of the focus on mobile has centered around cloud datacenters and the networking to get the data back and forth between these datacenters and the mobile device. Functions like voice recognition and mapping depend on the ability to split the functionality between the smartphone, for local processing like encryption and compression, and the back end, where a large number of servers can do the heavier lifting before returning the results.
Steven Brown
The Cadence 10G multi-protocol PHY was architected to address this exact challenge. Designed to scale across multiple process nodes, it consolidates PCI Express (PCIe), USB, DisplayPort, Ethernet, and other interfaces into a single, compact, silicon-efficient block. What sets it apart is simultaneous multi-protocol support, which enables multiple data paths without duplicating hardware, requiring extra board connectors, or paying the area and power penalty of separate IP blocks.
