What is Numerically Controlled Oscillator?
Numerically Controlled Oscillator is a Oscillator IP core from Lattice Semiconductor Corp. listed on Semi IP Hub.
Vendor:
Lattice Semiconductor Corp.
Category:
Oscillator
Numerically Controlled Oscillator
Numerically Controlled Oscillators (NCO), also called Direct Digital Synthesizers (DDS), offer several advantages over other type…
Overview
Numerically Controlled Oscillators (NCO), also called Direct Digital Synthesizers (DDS), offer several advantages over other types of oscillators in terms of accuracy, stability and reliability. NCOs provide a flexible architecture that enables easy programmability such as on-the-fly frequency/phase. NCOs are used in many communications systems including digital up/down converters used in 3G wireless and software radio systems, digital PLLs, radar systems, drivers for optical or acoustic transmissions, and multilevel FSK/PSK modulators/demodulators.
Lattice provides a parameterizable NCO IP core that supports multiple channels and a Quadrature Amplitude Modulation (QAM) mode, in addition to other usual configurations. The resource utilization and performance trade-off can be tuned by configuring different parameters of the IP core to obtain the optimal Spurious Free Dynamic Range (SFDR) result. The Lattice NCO core offers a variety of memory reduction schemes and mechanisms for SFDR improvement.
Lattice provides a parameterizable NCO IP core that supports multiple channels and a Quadrature Amplitude Modulation (QAM) mode, in addition to other usual configurations. The resource utilization and performance trade-off can be tuned by configuring different parameters of the IP core to obtain the optimal Spurious Free Dynamic Range (SFDR) result. The Lattice NCO core offers a variety of memory reduction schemes and mechanisms for SFDR improvement.
Key features
- Supports single or multi channel operation up to 16 channels
- Run time variable phase increment input Δθ and phase offset input φ
- Up to 32-bit user-configurable phase resolution
- Up to 20-bit user-configurable quantizer resolution
- Up to 32-bit user-configurable amplitude resolution
- User-configurable memory saving architectures – 1/2 wave, 1/4 wave or full wave
- User-selectable sum of angles (SOA) optimization for memory saving
- Up to 4-bit user-selectable phase dithering correction
- User-selectable trigonometric correction for SFDR improvement
- Option for truncating or rounding the quantizer output when neither dithering nor trigonometric correction is used.
- User-selectable QAM mode support
- Provides high-SFDR up to 115 dB
- Provides sine, cosine or quadrature outputs.
- User configurable output polarity
Block Diagram

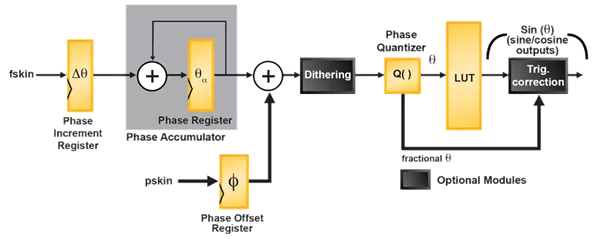

NCO-DDS block diagram
