MIPI SOUNDWIRE SLAVE

MIPI SoundWire is low-complex, low-power, low-latency interface that supports multi-channel data.

Contact Provider Request Datasheet

Overview

MIPI SoundWire is low-complex, low-power, low-latency interface that supports multi-channel data. Being low gate count enables it to be adopted it into smaller components like microphones and amplifiers.

SoundWire Master is used in any master controllers like Amplifiers or processors to transfer or receive audio data from one of the SoundWire slaves, like the one connected to a microphone or a speaker. SoundWire Slave is a full SoundWire standard compliant slave that can do a slave to slave communication according to the device component connected to it.

Key features

  • Compliant with MIPI SoundWire Standard 1.1x
  • SoundWire Host can support up to 11 Slaves.
  • Up to 8 Data Lanes supported
  • Slave-to-Slave transport supported
  • Modified-NRZI Data Encoding.
  • Special internal register space for each devices
  • Optional Monitor Interface
  • Optional APB/AXI interface supported.
  • Configurable data width: 8/16/32-bit

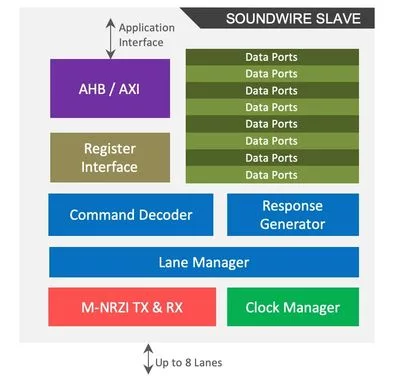

Block Diagram

MIPI SOUNDWIRE SLAVE block diagram

Specifications

Identity

Part Number
MIPI SOUNDWIRE SLAVE
Vendor
PRSsemicon Group
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

PRSsemicon Group
HQ: India
Contact PRSsemicon Group
