MIPI DSI v1.3.2 Verification IP

The MIPI DSI with D-PHY Verification IP provides an effective and efficient way to verify the components interfacing with MIPI DSI with D-PHY interface of an IPand SOC. The MIPI DSI with D-PHY VIP is fully compliant to MIPI DSI Specification version 1.3.2 along with MIPI D-PHY Specification version 1.2. The VIP is light weight with easy plug-and- play interface so that there is no hit on the design cycle time.

• Compliant to MIPI DSI Specification version 1.3.2 and MIPI D-PHY Specification version 1.2 with PPI interface.
• Support all Calibration Formats & operations
• D-PHY supports MFAA and SFAA for DSI TX and RX respectively for Data Lane Module in command mode.
• D-PHY supports MFAN and SFAN for DSI TX and RX respectively for Data Lane Module in video mode.
• D-PHY supports MCNN and SCNN for DSI TX and RX respectively for Clock Lane Module at PHY layer.
• Configurable number of Data Lanes and Sub Links.
• Supports Data Lane distribution and merging in case of multilane configuration.
• Supports High-Speed, Low Power Escape, Control modes.
• Supports 8b9b symbol encoding and decoding.
• Supports dynamically configurable modes.
• Supports all Short and Long packet formats.
• Supports ECC & CRC generation as well as correction/detection.
• Supports End of Transmission packet along with EOT Sequence.
• Strong Protocol Monitor with real time exhaustive programmable checks available for each LLP, LM and PHY layer.
• Supports Dynamic as well as Static Error Injection scenarios at both Protocol and PHY layer.
• On the fly protocol checking using protocol check functions, static and dynamic assertion.
• Built in Coverage analysis. Ø Provides a comprehensive user API (callbacks) in Transmitter and Receiver.
• Graphical analyser for all Layers to show transactions for easy debugging.

• Available in native SystemVerilog (UVM/OVM/VMM) and Verilog.
• Unique development methodology to ensure highest levels of quality.
• Availability of Conformance and Regression Test Suites.
• 24X5 customer support.
• Unique and customizable licensing models.
• Exhaustive set of assertions and cover points with connectivity examples for all the components.
• Consistency of interface, installation, operation and documentation across all our VIPs.
• Provide complete solutions and easy integration in IP and SoC environments.

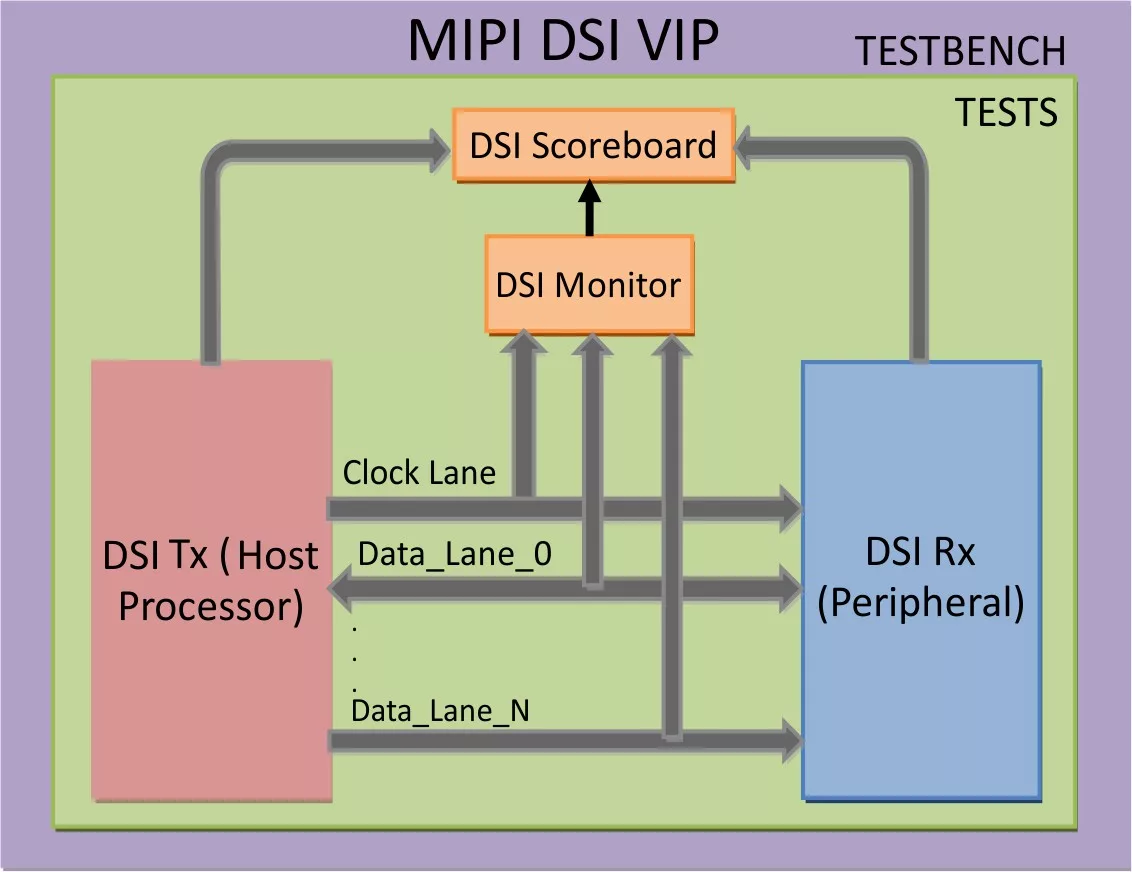

• MIPI DSI TX/RX BFM/Agent
• MIPI DSI Monitor and Scoreboard
• Testbench Configurations
• Test Environment & Test Suite:
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Assertions & Coverage Tests
• Integration Guide, User Manual and Release Notes
