What is MIPI DSI Transmitter v1.2 Controller IP, Compatible with MIPI D-PHY & C-PHY?
MIPI DSI Transmitter v1.2 Controller IP, Compatible with MIPI D-PHY & C-PHY is a MIPI IP core from T2M GmbH listed on Semi IP Hub.
Vendor:
T2M GmbH
Category:
MIPI
MIPI DSI Transmitter v1.2 Controller IP, Compatible with MIPI D-PHY & C-PHY
MIPI DSI transmitter IP is used to connect to up to two displays using the MIPI DSI-1 protocol.
Overview
MIPI DSI transmitter IP is used to connect to up to two displays using the MIPI DSI-1 protocol. It supports video and command displays and can work in dual-display mode. Up to 4x 1.5Gbps D-PHY data lanes are supported. DPI and DBI are fully supported. DSI link can be switched from one mode to another (command to video or vice-versa) without resetting the IP. The behavior of this block is controlled via registers programmed using an APB interface (AMBA 3 compliant).
Key features
- MIPI Alliance Specification for Display Serial
- MIPI display type 1, type 2, type 3 and type 4
- Video mode (Non-Burst with Sync Pulses, Non-Burst with Sync Events and same for Burst mode).
- TE feature (Tearing Effect) for command display
- Power consumption modes (PLL on/off, D-PHY ULPS, optimized mode)
- Supported display sizes: QQVGA (160 x 120) - 15/20/30/60 fps - 16-18 and 24 bits per pixels
- QCIF (176x144), QCIF+ (176x208 and 176x220) - 15/20/30/60 fps - 16-18 and 24 bits per pixels
- QVGA (320x240) - 15/20/30/60 fps - 16-18 and 24 bits per pixels
- CIF (352x288), CIF+ (352x416 or 352x440) -15/20/30/60 fps - 16-18 and 24 bits per pixels
- 1/2 VGA (320x480) and 2/3 VGA (640x320)-15/20/30/60 fps - 16-18 and 24 bits per pixels
- VGA (640x480) - 15/20/30/60 fps - 16-18 and 24 bits per pixels
- WVGA (800x480 - 848x480 -854x480 -852x480) - 15/20/30/60 fps - 16-18 and 24 bits per pixels
- SVGA (800x600) - 15/20/30/60 fps - 16-18 and 24 bits per pixels
- XVGA (1024x768) - 15/20/30/60 fps - 16-18 and 24 bits per pixels
- Main interfaces: MIPI D-PHY PPI, APB system bus interface, 32-bit APB interface registers

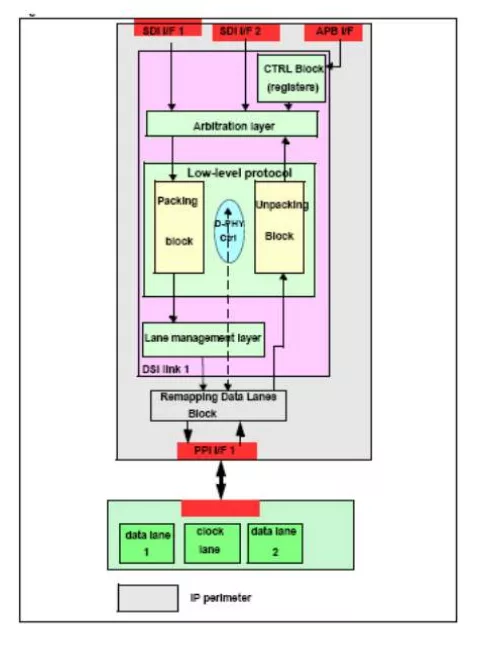

Block Diagram
MIPI DSI Tx v1.2 Controller IP block diagram
What’s Included?
- The MIPI DSI Tx Controller interface is available in Source and netlist products.
- The Source product is delivered in plain text Verilog. If needed VHDL, SystemC code can also be provided.
- Firmware code and Linux driver package
- Documentation contains User's Guide and Release notes.
Specifications
Identity
Part Number
MIPI DSI Tx v1.2 Controller IP
Vendor
T2M GmbH
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Germany
