Vendor: VeriSilicon Microelectronics (Shanghai) Co., Ltd. Category: MIPI

MIPI DSI Host Controller

The VS_DSI2_HOST is a DSI-2 Host Controller that provides a standard, robust, scalable, low-power, high-speed, cost-effective int…

Contact Provider Request Datasheet
Controller MIPI DSI MIPI DSI View all specifications

Overview

The VS_DSI2_HOST is a DSI-2 Host Controller that provides a standard, robust, scalable, low-power, high-speed, cost-effective interface that supports a wide range of imaging solutions for mobile devices. This DSI-2 interface IP core is fully compliant with MIPI Alliance Standard for Display Serial Interface 2 (DSI-2) Version 2.2. It supports both D-PHY (up to 4 lanes) and C-PHY (up to 3 trios) interfaces with configurable PPI widths for high-speed and low-power operation. The IP provides an enhanced DPI supporting both video and command modes with programmable signal polarity and configurable pixel throughput (1 or 4 pixels per cycle), and it supports a wide range of video mode formats per DSI-2 v2.2, including various YCbCr, RGB, and compressed pixel streams up to 48-bit. In addition to BIST (color bar) mode, comprehensive error detection is implemented, covering PHY, packet, protocol, and FIFO status.

Key features

  • MIPI Alliance Specification compliant with D-PHY Version 3.0
  • MIPI Alliance Specification compliant with C-PHY Version 2.1
  • MIPI Alliance Standard compliant with Display Serial Interface 2 (DSI-2) Version 2.2
  • Supports D-PHY de-skew, alternative calibration
  • Supports configurable 4 ppc or 1 ppc in DPI interface, and both video and command modes
  • Command mode supports 16/18/24/30/36-bit RGB using DPI interface as 1 pixel per cycle or 4 pixels per cycle
  • Supports arbitrary command packet size which can be divided by total pixels per frame
  • Video mode supports all pixel formats (up to 48-bit DPI data width) in DSI-2 v2.2
  • Supports APB3 control register with shadow configuration mechanism
  • Supports command among video mode and enhanced Display Pixel Interface
  • Supports BIST mode (color bar), timeout error detection, and error report from peripheral
  • Interfaces with optional MIPI D-PHY or C-PHY following PHY Protocol Interface (PPI)
  • Supports D-PHY: 8-bit, 16-bit, or 32-bit PPI (programmable)
  • Supports C-PHY: 16-bit, 32-bit, or 64-bit PPI (programmable)
  • Supports up to MIPI D-PHY TX 4 data lanes and C-PHY TX 3trios
  • Supports D-PHY high-speed and low-power operation, C-PHY high-speed and low-power operation
  • Supports programmable scrambling
  • Supports programmable polarity for enhanced DPI signals
  • Configurable SRAM size

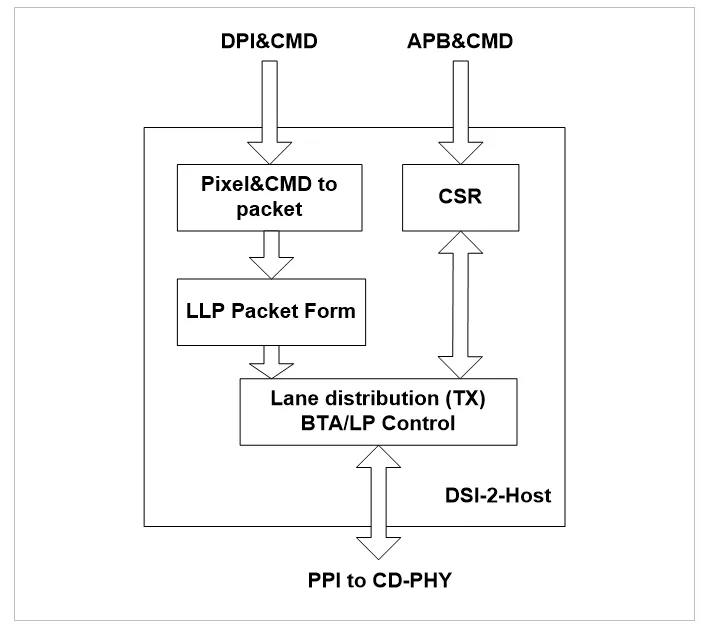

Block Diagram

Click to open fullscreen

Specifications

Identity

Part Number
VS_DSI2_HOST
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP
Controller / PHY
Controller

Standards & Interfaces

Video Standard
MIPI DSI
MIPI Protocol
MIPI DSI

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
