MIPI DSI-2 Transmitter Controller IP Core

The MIPI Display Serial Interface (DSI-2) Transmitter (host processor interface) Controller IP provides a high-speed serial inter…

Contact Provider Request Datasheet

Overview

The MIPI Display Serial Interface (DSI-2) Transmitter (host processor interface) Controller IP provides a high-speed serial interface between an application processor and display modules using either MIPI C-PHY v1.1 or MIPI D-PHY v1.2 and v2.0.

Key features

Compliant with the following MIPI specifications

  • Display Serial Interface (DSI-2) version 1.0
  • Display Pixel Interface (DPI-2) version 2.00
  • Display Bus Interface (DBI) version 2.00
  • Display Command Set (DCS) version 1.3
  • D-PHY version 1.2
  • CPHY 1.1 and D-PHY version 2.0 (Combo PHY)

DSI TX (Processor Host) interface supports

  • Connectivity to D-PHY through PPI Interface
  • 1 to 4 data lane support
  • Hi-Speed (HS) transmit from 80 Mbps to 2.5Gbps per lane
  • Low Power (LP) receive/transmit from/to device at 10 Mbps
  • Continuous and stoppable clocks on clock lane
  • Bus turnaround with contention and fault recovery
  • Switching to and from Low Power (LP) and Ultra-low Power (ULPS) modes
  • EOT enable/disable mechanisms
  • Multiple packets per transmission with interleaved data stream
  • Programmable error injection in Verification IP and error detection in design IP
  • Supports flexibility in setting polarity for DPI Interface signals

Application Processor Connectivity and video/command processing

  • DPI or DBI, depending on panel or display unit architecture
  • Generic command support
    • Generic parallel interface for sending and receiving vendor-specific information to and from the display driver logic in the display module
    • Support for all generic read/writes over DBI/Generic interface
  • Video mode support
    • Supports wide range of display resolution and pixel formats
    • Supported display resolutions: QQVGA, QCIF, QVGA, CIF,VGA,WVGA, XGA, 1080p, QXGA, QSXGA
    • Burst mode and non-burst transfers over DPI interface
  • DBI support
    • Supports 8/9/16-bit data transfer in DBI Type B interface
    • Supports all DCS commands

AHB Interface for register configuration and monitoring using programmed IO

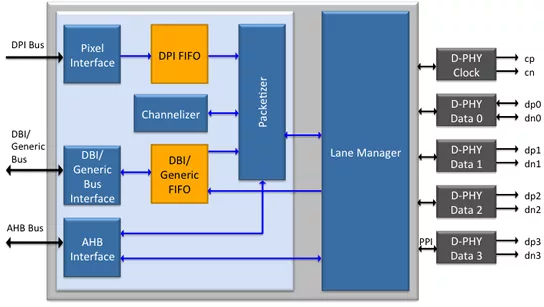

Block Diagram

MIPI DSI-2 Transmitter IP Controller Core block diagram

Benefits

  • Fully compliant to MIPI standard
  • Small footprint
  • Code validated with Spyglass
  • Functionality ensured with comprehensive verification
  • Product quality proven with silicon
  • Premier direct support from Arasan IP core designers

What’s Included?

  • Verilog HDL of the IP Core
  • Synthesis scripts
  • Verification environment
  • User guides for design and verification

Specifications

Identity

Part Number
MIPI DSI-2 Transmitter IP Controller Core
Vendor
Arasan Chip Systems Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Arasan Chip Systems Inc.
