MIPI DPHY-Rx
Complete PHY solution that is fully compliant to MIPI D-PHY specification version 1.2
Overview
Silicon Library (SLI) MIPI® D-PHY RX IP is a complete PHY solution that is fully compliant to MIPI D-PHY specification version 1.2, enabling easy integration of MIPI® D-PHY interface into low-power modern SoCs. The solution consists of Analog PHY and digital Control and Interface Logic (CIL). PHY is provided as a hard macro while CIL is provided as a synthesizable soft macro. This IP solution can be applied to both MIPI® Camera Serial Interface (CSI-2) and MIPI® Display Serial Interface (DSI) protocols. Both High-Speed (HS) and Low-Power (LP) modes are supported with one clock lane and four data lanes.
This PHY IP is available as Silicon proven ‘off-the-shelf’ IP in major fabs and technology nodes of 22nm and 55nm.
Key features
- Compliant with MIPI® D-PHY specification version 1.2
- One clock lane and four data lanes
- PHY Protocol Interface (PPI)
- Supports synchronous data transfer in high speed (HS) mode, covering 80M-1.5Gbps
- Supports asynchronous data communication in low power (LP) mode at up to 10Mbps
- Configurable skew adjustment
- Supports Ultra-Low Power State
- Sequence error detection mechanism

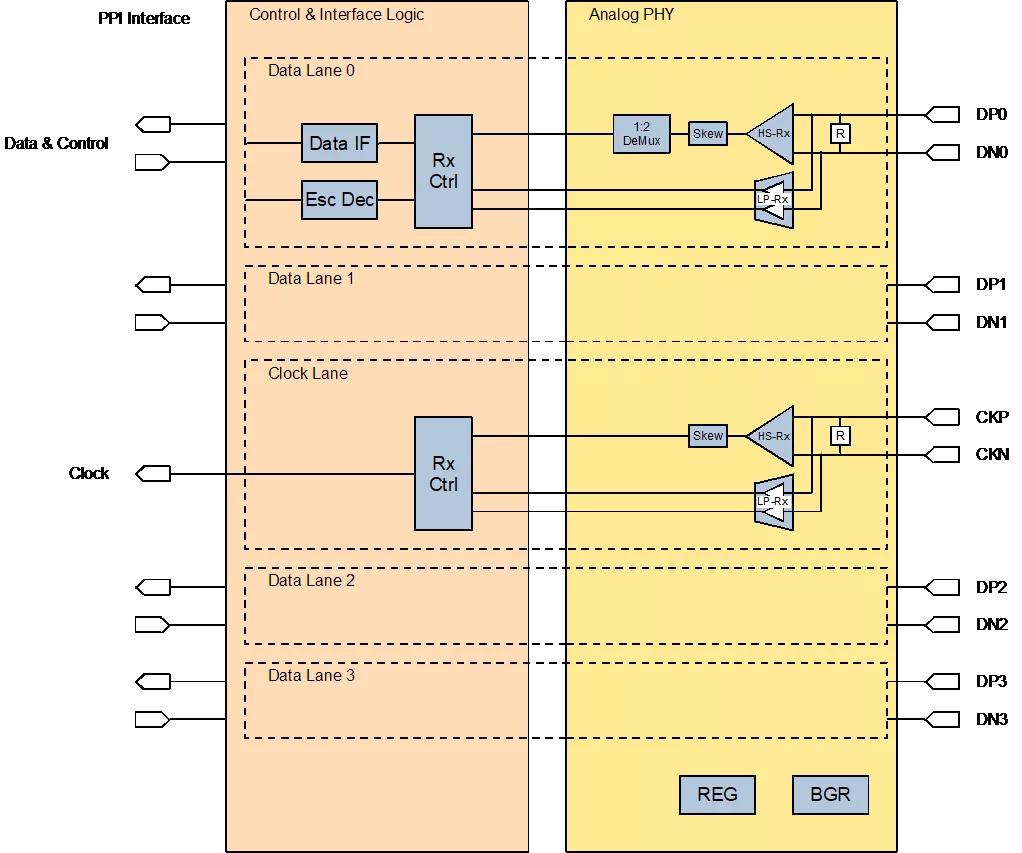

Block Diagram
Click to open fullscreen
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 130nm | BCD+ | — |
Specifications
Identity
Part Number
MIPI DPHY-Rx
Vendor
Silicon Library Inc.
Type
Silicon IP
Controller / PHY
PHY
Standards & Interfaces
MIPI PHY
MIPI D-PHY
