MIPI D-PHY RX
This is a D-PHY RX IP compliant with the “MIPI Alliance Spec for D-PHY v1.2”.
Overview
This is a D-PHY RX IP compliant with the “MIPI Alliance Spec for D-PHY v1.2”. The IP consists of 1 clock and 4 data lanes. Data lane 0 supports HS and ULPS modes in the forward direction, and also supports LP Escape modes (LPDT, Trigger) and Turnaround in both forward and reverse directions. Other Data lanes support HS and LP Escape modes (LPDT, Trigger, ULPS) in the forward direction. Each lane supports a maximum of 2.5 Gbps in High-Speed mode and 10 Mbps in Low-Power escape mode. Target applications are CSI-2 host and DSI device physical layers.
Key features
- Compliant with the MIPI D-PHY spec v1.2
- Data rate per lane: High-Speed mode 80 Mbps to 2.5 Gbps, Low-Power mode 10 Mbps
- Lane type:1 clock + 4 data lanes (D0 lane is bi-directional)
- All lanes support D-PHY HS and ULPS modes in the forward direction
- All data lanes support Escape mode (LPDT, Trigger) in the forward direction
- D0 lane supports reverse Escape modes (LPDT, Trigger) and Turnaround
- All lanes support SUB-LVDSRX mode
- On-chip differential 100Ω terminations with calibration
- Built-in self-test function

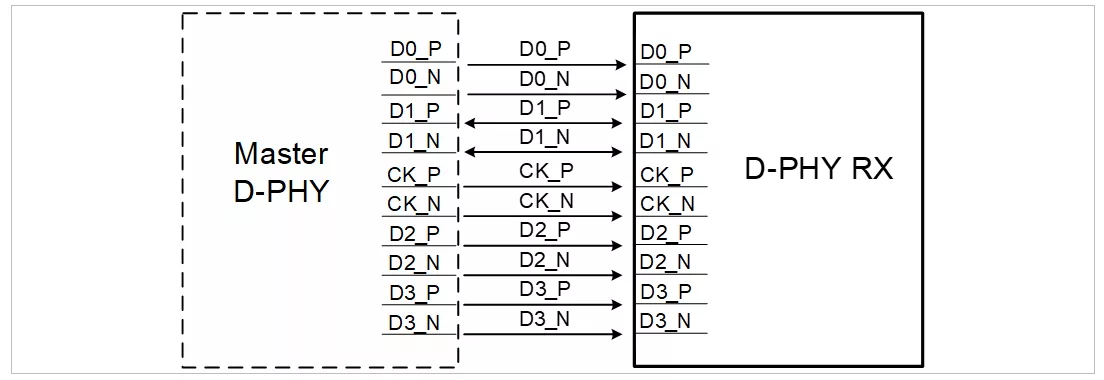

Block Diagram
Click to open fullscreen
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | Silicon Proven |
Specifications
Identity
Part Number
MIPI D-PHY RX
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP
Controller / PHY
PHY
Standards & Interfaces
MIPI PHY
MIPI D-PHY
Files
Note: some files may require an NDA depending on provider policy.
Provider
Learn more about MIPI PHY IP core
MIPI DPHY Solution
