MIPI PHY
MIPI D-PHY TX
This is a D-PHY Master IP compliant with the “MIPI Alliance Spec for D-PHY v1.2”.
Overview
This is a D-PHY Master IP compliant with the “MIPI Alliance Spec for D-PHY v1.2”. The IP consists of 1 clock and 4 data lanes. Each data lane supports HS and LP Escape modes (LPDT, Trigger, ULPS) in the forward direction. The supported data rate per lane is 2.5 Gbps in High-Speed mode and 10 Mbps in Low-Power escape mode. Only data lane 0 is bi-directional and additionally supports Turnaround and LP Escape modes (LPDT and Trigger) in the reverse direction. Target applications are CSI-2 devices and DSI host physical layers.
Key features
- Data rate per lane: High-Speed mode 80 Mbps to 2.5 Gbps, Low-Power mode 10 Mbps
- Compliant with the MIPI D-PHY spec v1.2
- Support for HiSPi-SLVS TX compatible mode
- Lane type: 1 clock + 4 data lanes (D0 is bi-directional)
- On-chip differential 100Ω terminations with calibration
- Support for D-PHY Ultra Low Power State
- Built-in self-test function

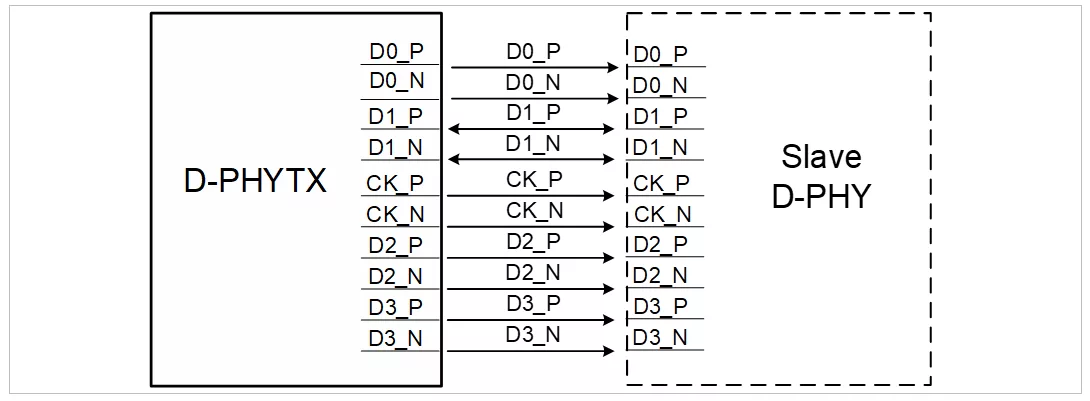

Block Diagram
Click to open fullscreen
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 22nm | FDX | Silicon Proven |
Specifications
Identity
Part Number
MIPI D-PHY TX
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP
Controller / PHY
PHY
Standards & Interfaces
Compliance Status
Compliant
MIPI PHY
MIPI D-PHY
Files
Note: some files may require an NDA depending on provider policy.
