Vendor: VeriSilicon Microelectronics (Shanghai) Co., Ltd. Category: MIPI

MIPI CSI Device Controller

The VS_MIPI_CSI2_DEVICE is a CSI-2 device-side controller that implements the CSI-2 protocol for transmitting data to a CSI-2-com…

Contact Provider Request Datasheet
Controller MIPI CSI2 MIPI CSI-2 View all specifications

Overview

The VS_MIPI_CSI2_DEVICE is a CSI-2 device-side controller that implements the CSI-2 protocol for transmitting data to a CSI-2-compliant host, targeting chip-to-chip communication in mobile systems. It is fully compliant with the MIPI Alliance Standard for CSI-2, Version 2.1, and supports both D-PHY (up to 4 lanes) and C-PHY (up to 4 trios) interfaces, with configurable PPI widths to accommodate high-speed and low-power operation. The controller also offers configurable pixel throughput (4 or 8 pixels per cycle), supports a wide range of image formats (including YUV, RGB, RAW, and others), and provides multi-virtual channel identification and processing for efficient multiplexing of multiple data streams.

Key features

  • Complies with MIPI Alliance and AMBA standards
    • MIPI Alliance Standard compliant withCamera Serial Interface (CSI-2) Version 2.1
    • MIPI Alliance Specification compliant with C-PHY Version 2.1
    • MIPI Alliance Specification compliant with D-PHY Version 2.1
    • AMBA 3.0/4.0 Specification (APB) from Arm
  • Supports MIPI C-PHY 32-bit, D-PHY 16/32-bit data width PHY Protocol Interface (PPI) as output
  • Supports up to 4 configurable MIPI C-PHY/D-PHY TX data trios/lanes
  • Supports up to 4.5Gsps/6Gbps per trio/lane for C-PHY/D-PHY
  • Supports a maximum 16 virtual channels for D-PHY and 32 virtual channels for C-PHY
  • Supports C-PHY/D-PHY high speed and low power operation
  • Supports C-PHY/D-PHY ultra low power state (ULPS)
  • 160-bit Image Pixel Interface (IPI) input interface
  • 192-bit Packet Based Interface (PBI) Master/Slave interface
  • Supports primary and secondary data formats
    • YUV420 8-bit (Legacy)/8-bit/10-bit and YUV422 8-bit/10-bit
    • RGB888, RGB666, RGB565, RGB555, and RGB444
    • RAW6, RAW7, RAW8, RAW10, RAW12, RAW14, RAW16, and RAW20
    • User-defined byte-based data
    • Generic 8-bit long packets (Null, Blanking, Embedded data)
  • Supports generic short data types
  • Supports processing multiple pixels (4 or 8 pixels) per pixel clock
  • Supports 3 work modes corresponding to different format conversions
    • IPI -> PBI
    • IPI -> PPI
    • PBI -> PPI
  • Error detection
    • Memory level
    • IPI/PBI level
    • System level

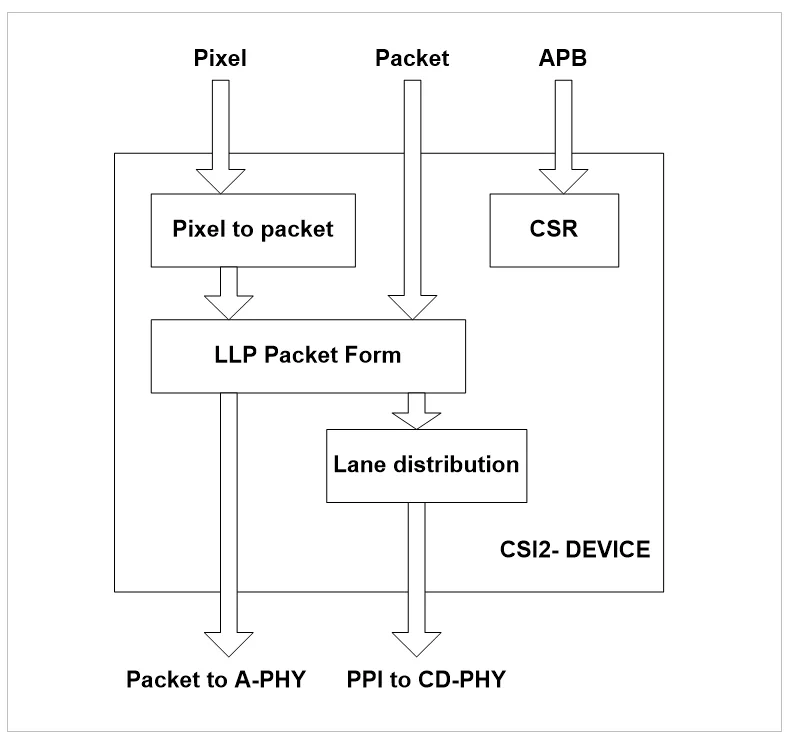

Block Diagram

Click to open fullscreen

Specifications

Identity

Part Number
VS_MIPI_CSI2_DEVICE
Vendor
VeriSilicon Microelectronics (Shanghai) Co., Ltd.
Type
Silicon IP
Controller / PHY
Controller

Standards & Interfaces

Video Standard
MIPI CSI2
MIPI Protocol
MIPI CSI-2

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.
