MIPI CSI-2 Controller Core

The MIPI CSI-2 controller core is optimized for high performance, low power and small size.

Contact Provider Request Datasheet

Overview

The MIPI CSI-2 controller core is optimized for high performance, low power and small size. The core is fully compliant with the CSI-2 standard and implements all three layers defined therein: Pixel to Byte Packing, Low Level Protocol, and Lane Management. For automotive safety-critical applications, an ASIL-B version of the core is available and includes a Safety Manual, Design Failure Mode & Effects Analysis (DFMEA) and Failure Mode, Effects and Diagnostic Analysis (FMEDA).

Key features

  • Fully MIPI CSI-2 standard compliant
  • 64 and 32-bit core widths
  • Transmit and Receive versions
  • Supports 1-8, 9.0+ Gbps D-PHY data lanes
  • Supports 1-4, 6.0+ Gsym/s C-PHY lane (trio)
  • Supports all data types
  • Easy-to-use pixel-based interface
  • Optional AXI interface (Rx only)
  • Optional video interface
  • Delivered fully integrated and verified with target MIPI PHY
  • Complete FPGA-based demonstration system available
  • Optional ASIL-B Ready safety deliverables

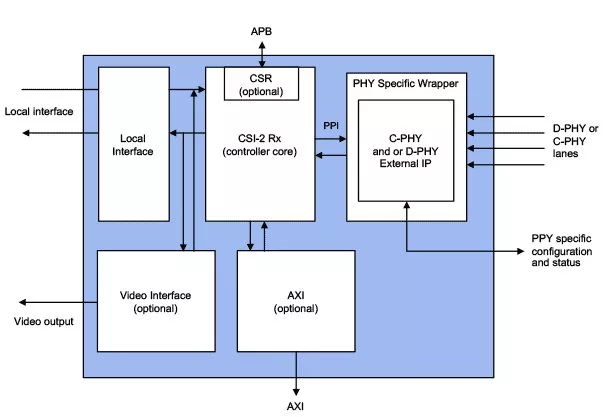

Block Diagram

MIPI CSI-2 Controller Core block diagram

What’s Included?

  • Core (Netlist or Source Code)
  • Testbench (Source Code)
  • Complete Documentation
  • Expert Technical Support & Maintenance Updates

Specifications

Identity

Part Number
MIPI CSI-2 Controller Core
Vendor
Rambus, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Rambus, Inc.
HQ: USA
Contact Rambus, Inc.
