JESD204b Deserializer PHY - GF 22nm FDX

JESD204b Deserializer PHY, 6.375 Gbps up to 12.5 Gbps per lane - GF 22nm FDX

Contact Provider Request Datasheet
PHY JESD204B GlobalFoundries 22nm FDX Available on request View all specifications

Overview

This Deserializer PHY is implemented in Globalfoundries 22FDX CMOS technology. The IP macro offers 2x lanes with data rate up to 12.5 Gbps per lane and low power consumption (36 mW at 12.5Gbps). Its compact footprint of makes it an excellent choice for SoC designs that require ultra-high data rates such A/D and D/A convertors By paring with additional macros/lanes the overall achievable data rate can exceed 100 Gbps.


Key features

  • JESD204C-B12 semi-compliant
  • Data rate up to 12.5Gbps per lane
  • 1-lane per IP macro
  • GF22FDX/-PLUS CMOS technology

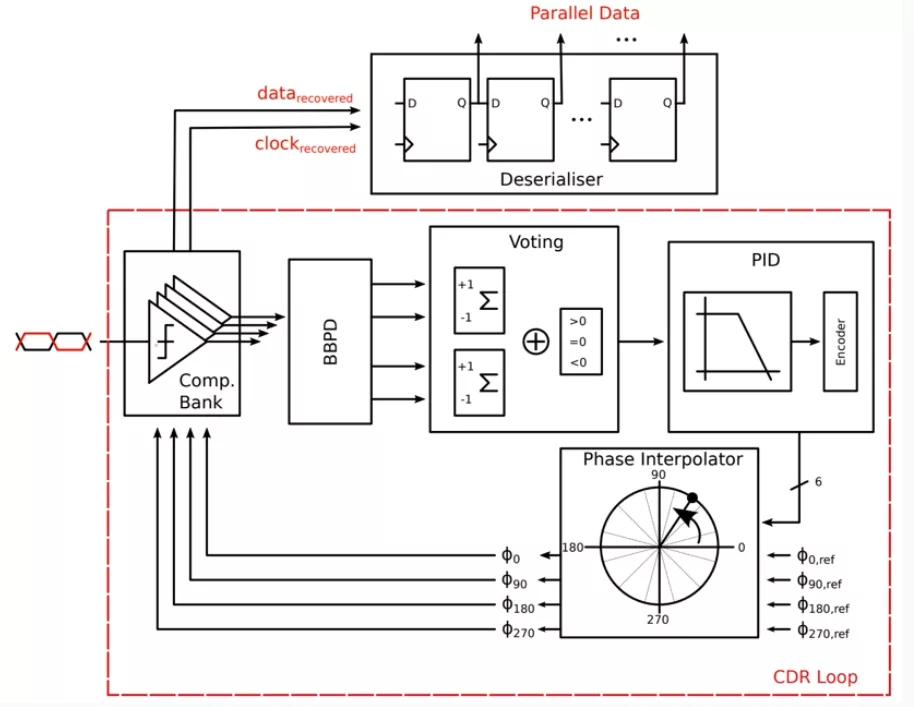

Block Diagram

Click to open fullscreen

Applications

  • SoCs requiring multi-Gbps data rates
  • Radar Applications
  • Satellite Communications
  • Wireless Communications

What’s Included?

  • GDSII layout
  • Verilog (or SystemVerilog) model
  • Integration support
  • DRC, LVS reports
  • Datasheet including characterization results
  • CDL netlist for LVS
  • LEF files
  • Verification report

Silicon Options

Foundry Node Process Maturity
GlobalFoundries 22nm FDX Available on request

Specifications

Identity

Part Number
AIX-DES-12P5G-GF22DFX
Vendor
InCirT GmbH
Type
Silicon IP
Controller / PHY
PHY

Standards & Interfaces

JESD204 Version
JESD204B

Provider

InCirT GmbH
HQ: Germany
Contact InCirT GmbH
