What is Integrated Oscillator - TSMC 180n?
Integrated Oscillator - TSMC 180n is a Oscillator IP core from Obsidian Technology listed on Semi IP Hub.
Vendor:
Obsidian Technology
Category:
Oscillator
Integrated Oscillator - TSMC 180n
The OT3912t is an integrated oscillator for TSMC 180n processes.
Overview
The OT3912t is an integrated oscillator for TSMC 180n processes. No external components are required. After a simple trim process a frequency stability of better than 1% is achieved over voltage and temperature ranges.
The IP is silicon proven and is included in the OT9115 USB PD cable marker chip.
Key features
- No external components.
- Frequency stability 1% over temperature and voltage.
- Trim at test.
- 8-25MHz frequencies available.
- Supply voltage 1.6-2.0V
- Area 0.03mm2.
- Typical power 80uW

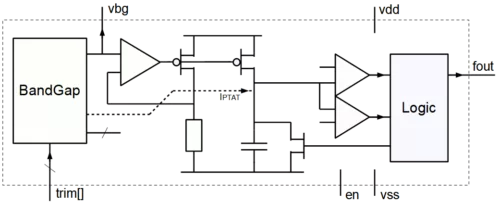

Block Diagram
OT3912t block diagram
Specifications
Identity
Part Number
OT3912t
Vendor
Obsidian Technology
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
