32b/64b RISC-V 2-stage, scalar, in-order, Embedded Processor. RTOS and multi-core capable. Maps upto ARM M-4F. Optimal PPA.
InCore Azurite is an extremely compact, RISC-V 2-stage pipelined micro-processor.
Overview
InCore Azurite is an extremely compact, RISC-V 2-stage pipelined micro-processor. Built on Incore's proprietary deep-customization stack for microarchitectural exploration, Azurite delivers industry-beating performance in an exceptionally small silicon footprint. A 32-bit processor at the cost of a traditional 8-bit price point.
The Azurite core comes bundled as a compute subsystem, with integrated AMBA protocol interconnects (supports AXI4, AHB, APB) and uncore components (debug, trace, interrupt controllers etc).
The Azurite core comes bundled as a compute subsystem, with integrated AMBA protocol interconnects (supports AXI4, AHB, APB) and uncore components (debug, trace, interrupt controllers etc).
Key features
- 32-bit RISC-V core
- 2-stage pipeline
- Available in many versions:
- RV32I[M][C][F][B][P][U]
- 32/16 general purpose registers
- Multiplier
- Iterative (fixed latency or early-out)
- Fast multiply (2-cycle)
- RISC-V privilege mode support:
- Machine
- User
- Optional FPU (single precision)
- Optional tightly coupled memories (TCM)
- Optional 8 or 16 PMP regions
- Optional Internal interrupt controller
- Up to 128 sources
- Optional Standard RISC-V CLINT
- Optional NMI
- Optional Trace
- RISC-V Debug module
- 2/4 pin JTAG
- 2-8 breakpoints/watchpoints

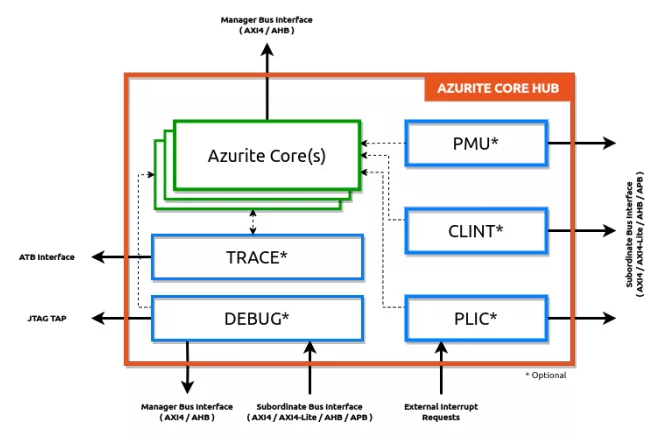

Block Diagram
Azurite block diagram
Benefits
- Configurability
- Over 2000 optimal design points
- Custom RISC-V extensions supported
- Time to Market
- Compute subsystem (core, interconnect, uncore) to quick-start SoC development
- PPA
- Industry-beating performance and area
Applications
- Consumer Electronics
- IoT
- Sensor Fusion
- Motor Control
- Industrial Controllers
- Storage Controllers
- Low-Power Embedded
- Mixed Signal Embedded
- Co-processors
What’s Included?
- RTL (Verilog)
- Fully synthesizable
- Human-readable
- Documentation:
- Datasheet
- User Guide
- Integration Guide
- Architecture Reference Guide
- Programmer's Guide
- Hardware Development Kit (HDK):
- FPGA: Xilinx bitstream
- Verification test suites
- ASIC: Synthesis and Constraints scripts
- Software Toolchain:
- GCC Cross Compiler
- GDB
- Open OCD
- Assembler
- Disassembler
- Linker
- Instruction Set Simulator
Specifications
Identity
Part Number
Azurite
Vendor
InCore
Type
Silicon IP
Compute
CPU Architecture
RISC-V
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
India
