Vendor: Canova Tech Srl Category: Single-Protocol PHY

100BASE-T1 (OABR) Ethernet PHY IEEE 802.3bw Compliant

CT25204 is a physical layer for Open Alliance BroadR-Reach® and IEEE 802.3bw Ethernet communication within the car.

Contact Provider Request Datasheet

Overview

CT25204 is a complete physical layer for Open Alliance BroadR-Reach® and IEEE 802.3bw Ethernet communication within the car.

It consists of an analogue hard macro and an RTL code for the digital, including PMA, PCS, MII and MDIO register functionality. It includes all the feature of Open Alliance BroadR-Reach® and IEEE 802.3bw including link status and quality monitor.

Link training time is controlled well below the limits imposed by the standard even in noisy environment.

The detection of open/short circuit on the line with accurate distance-to-fault reporting as well as SQI Measurement is implemented on the PHY.

Clock is generated with an internal VCXO or can be externally provided.

It requires only few external components. The IP can be interfaced with standard MAC Controller via MII/RMII Interface.

Canova Tech is BroadR-Reach® licensed by Broadcom Corporation.

The CT25204 is today implemented on 180nm silicon process and can be easily ported to lower geometries processes technologies to allow maximum integration.

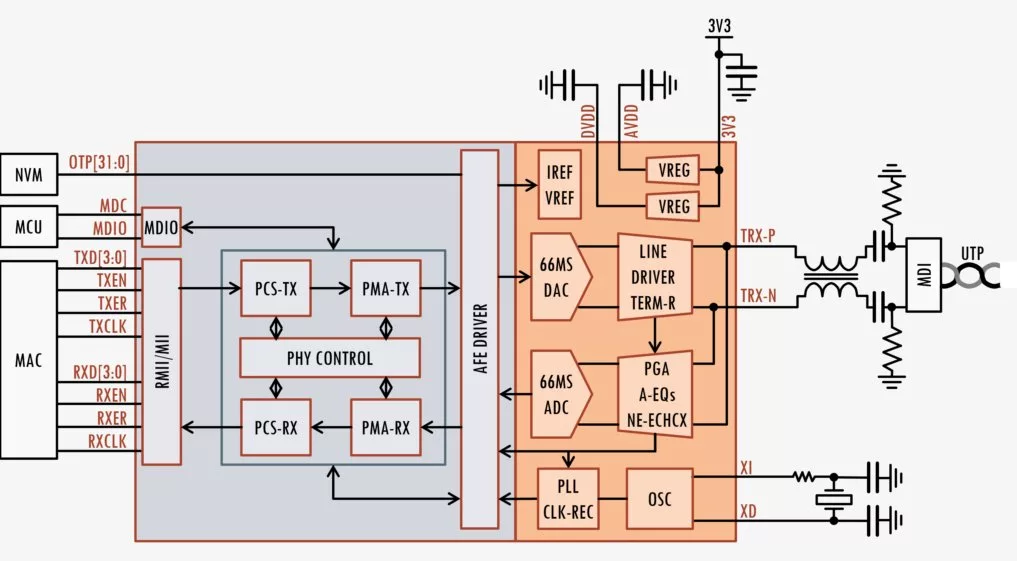

Block Diagram

CT25204 block diagram

Applications

  • Automotive Networks
  • Industrial Networks

Specifications

Identity

Part Number
CT25204
Vendor
Canova Tech Srl
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Canova Tech Srl
HQ: Italy
Contact Canova Tech Srl
