IEEE 802.1® Clause 4 Tiny MAC
The CT25208 Digital IP core is a standard Clause 4 CSMA/CD MAC exposing a proprietary, FIFO-like MAC Client interface (TX/RX).
Overview
The CT25208 Digital IP core is a standard Clause 4 CSMA/CD MAC exposing a proprietary, FIFO-like MAC Client interface (TX/RX).
On the other end, the CT25208 features a proprietary, MII-like Reconciliation Sublayer (RS) interface, including adapter modules to interface with standard MII/RMII PHYs.
The RTL code is written in plain Verilog 2005 HDL, and it is fully synthesizable on standard cells and FPGA systems.
The flexible MAC Client interface can also be configured for transferring 1, 2, or 4 bytes at a time, supporting both little-endian and big-endian byte order. This feature allows the CT25208 IP to be used with many MCUs and other systems based on shared-memory access by means of a dedicated Bus Adapted interface.
The CT25208 can be used in conjunction with other analog and digital blocks like (a) the CT25205 to implement a digital 10BASE-T1S MACPHY and (b) the CT25203, the CT25205 and the CT25209 to implement a complete OPEN Alliance MACPHY.
Key features
- Full CSMA/CD compliance, including half and full-duplex
- Support for 10 and 100 Mb/s operation
- Single MAC address filtering
- Promiscuous Mode
- FCS add/check
- Diagnostic Counters
- Status reporting
- Multiple MAC address filtering (multicast) based on address/mask pairs
- Broadcast / Multicast filtering
- Configurable FCS checking
- Underrun/Overrun error handling
- Disable of back-off mechanism
Block Diagram

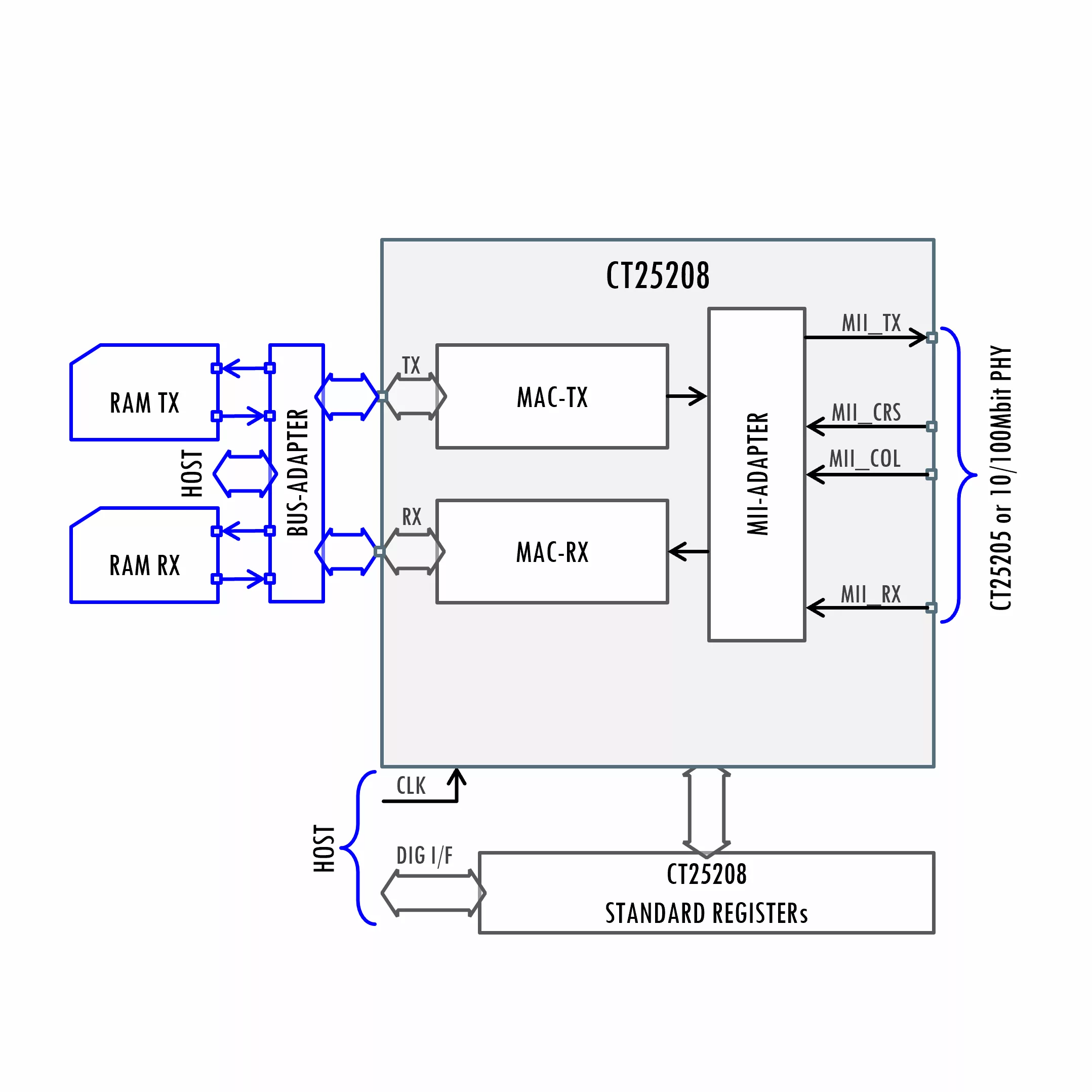

CT25208 block diagram
Applications
- Automotive Networks
- Industrial Networks
Specifications
Identity
Part Number
CT25208
Vendor
Canova Tech Srl
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Italy
