What is High-Performance Lossless Compression Core?
High-Performance Lossless Compression Core is a Data Compression IP core from IP Cores, Inc. listed on Semi IP Hub.
Vendor:
IP Cores, Inc.
Category:
Data Compression
High-Performance Lossless Compression Core
Lossless data compression is a class of data compression algorithms that allows the exact original data to be reconstructed from …
Overview
Lossless data compression is a class of data compression algorithms that allows the exact original data to be reconstructed from the compressed data.
LZR2 implements the lossless compression /decompression algorithm. Typical applications include enterprise data storage.
The design is fully synchronous and available in multiple configurations varying in bus widths and throughput.
LZR2 delivers sustained (gapless) throughput of 8 bits per clock on the decompressed side or about 1-2.5 Gbps of throughput in FPGA and 4-6 Gbps in ASIC implementations. The compression ratio greatly depends on the data and somewhat depends on the frames size; on typical file corpuses varies between 1.5 and 2..
LZR2 implements the lossless compression /decompression algorithm. Typical applications include enterprise data storage.
The design is fully synchronous and available in multiple configurations varying in bus widths and throughput.
LZR2 delivers sustained (gapless) throughput of 8 bits per clock on the decompressed side or about 1-2.5 Gbps of throughput in FPGA and 4-6 Gbps in ASIC implementations. The compression ratio greatly depends on the data and somewhat depends on the frames size; on typical file corpuses varies between 1.5 and 2..
Key features
- Each frame is compressed and decompressed independently
- Compatibility with public-domain LZ software implementations allows for interoperability
- Parameterizable maximum block size
- Support for compression and decompression in a single core; dedicates compression and decompression versions are available
- Back-to-back compression with no gaps between the frames

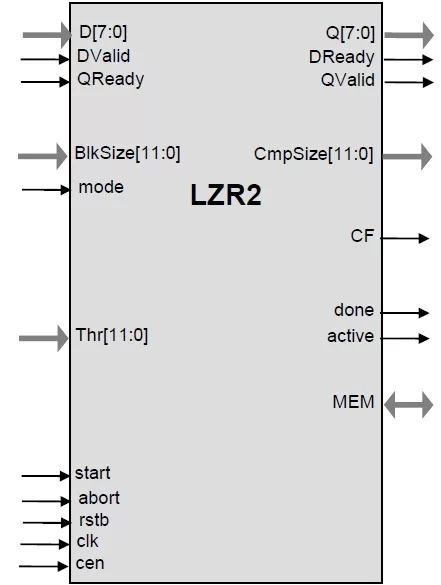

Block Diagram
LZR2 block diagram
Applications
- High-performance solid-state storage
- Disk and tape storage systems
Specifications
Identity
Part Number
LZR2
Vendor
IP Cores, Inc.
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
