Hardware Security Module (HSM) for AMD Xilinx Versal ACAP device

The HSM IP module is a Hardware Security Module for a wide range of applications.

Contact Provider Request Datasheet

Overview

The HSM IP module is a Hardware Security Module for a wide range of applications. It is developed according to the guidelines set out by the EVITA project and is meant to be implemented on a AMD Xilinx Versal ACAP device. It supports TrustZone.

As the connectivity of industrial systems is growing, so is the need for data integrity and system authentication. A very important aspect of this embedded security is a hardware security module (HSM), a security enclave that provides secure key management and cryptographic processing.

This HSM IP module removes the need for a dedicated HSM device and it incorporates 2 solutions:

  • The HSM hardware IP, to be implemented in programmable of the AMD Versal ACAP.
  • A software stack containing the HSM firmware, HSM driver code and an interface layer allowing integration into the AUTOSAR framework, for automotive applications.

Configurable, scalable and flexible solution

The hardware security module can be scaled and configured to match any requirement, even for the most demanding applications.

The size and performance of the solution can be adapted for a perfect application fit while leaving room in the FPGA for other critical applications.

Xilinx VERSAL ACAP Platform

Versal® adaptive compute acceleration platforms (ACAPs) combine Scalar Engines, Adaptable Engines, and Intelligent Engines with leading-edge memory and interfacing technologies to deliver powerful heterogeneous acceleration for any application.

Built on the TSMC 7 nm FinFET process technology, the Versal portfolio platform combines software programmability and domain-specific hardware acceleration with the adaptability necessary to meet today's rapid pace of innovation.

Key features

  • Secure key provisioning
  • Secure key storage
  • Secure counter
  • Flexible anti-tampering
  • Easy to integrate (AXI interface)
  • Cryptographic operations offload
    • PK engine
    • Symmetric engine
    • Random number generator
  • Flexible and scalable platform
  • Supports ISO26262

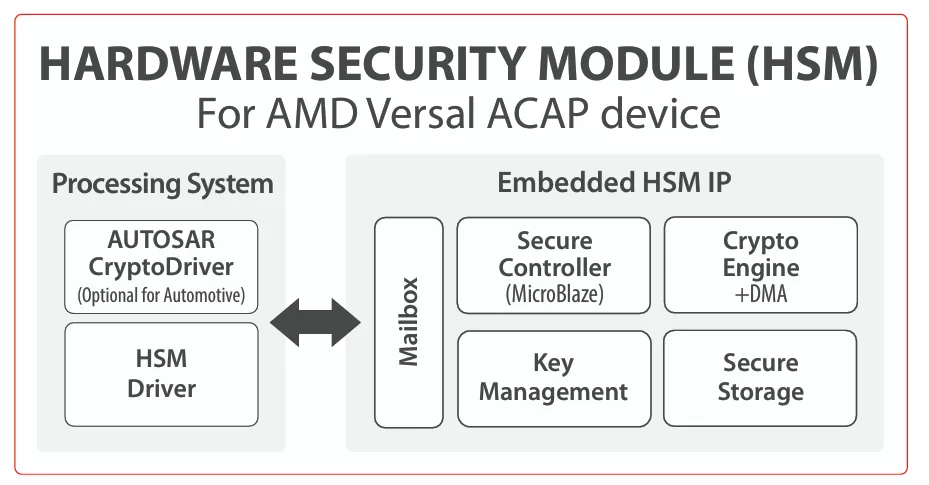

Block Diagram

SCZ_iSE_SFPGA_Versal block diagram

Applications

  • Automotive
  • Industrial
  • Defence
  • Smart metering
  • IoT
  • eHealth
  • Banking & finance

What’s Included?

  • FPGA netlist or encrypted RTL
  • Simulation model
  • HSM firmware
  • Reference simulation script
  • HSM driver
  • Reference implementation script
  • Self-checking testbench
  • Documentation

Specifications

Identity

Part Number
SCZ_iSE_SFPGA_Versal
Vendor
Secure-IC
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Secure-IC
HQ: France
Contact Secure-IC
