Vendor: Synopsys, Inc. Category: USB

Verification IP for eUSB 2 v2 and USB 2.0

Specifications: eusb2v2 rev0.9, USB 2.0 Interfaces: ​UTMI/ULPI/Serial/HSIC/EUSB2 (V1 & V2) DUT Types/Topology USB 2.0 - Host, Dev…

Contact Provider Request Datasheet
Verification IP USB 2.0 View all specifications

Overview

Specifications: eusb2v2 rev0.9, USB 2.0

Interfaces: ​UTMI/ULPI/Serial/HSIC/EUSB2 (V1 & V2)

DUT Types/Topology

  • USB 2.0 - Host, Device, PHY and  HUB
  • EUSB2.0 - Repeater, Native Controller and PHY

Key VIP Features

  • Specification linked Functional coverages
  • Scoreboard, callbacks and error injection
  • Speed modes - HS/FS/LS

Debug and Analysis

  • Verdi based protocol and performance analysis
  • Protocol checks at each layer
  • Debug ports and trace files

Key Protocol Features

  • Protocol Layer Features
    • All transfer types (Ctrl, Bulk, intr, Iso & Split transfers)
    • High bandwidth Iso/Interrupt transfers, Interleaving transfers/Ping transfers
    • Different handshaking response  (NAK/NYET/STALL/Nohandshake(timeout))
    • Device framework transfer initiation
    • PL Exceptions and error injections in packets (CRC16/5 error/Invalid PID/NPID/packet field errors, timeout)
  • Link Layer Features
    • All state machines entry/exit, Power mgmt. state entry/exit(L1/L2)
    • Vbus cut off in-between transfers & during suspend
    • Disconnect/connect during transfers & during reset, protocol reset in-between transfers
    • Fslsserialmode/Test mode support
    • OTG-SRP/HNP/ADP
  • PHY Features
    • Physical Exception and error injections(invalid SYNC and EOP, Bit-stuff error, Rxerror scenarios etc…)
    • Sync/EOP length adjustment, Preamble mode support
    • Keep alive(HS/LS) support

Test Suites / Groups Features

  • Host/Device/HUB/PHY/XHCI
  • AHB/AXI bus interface support along with system memory and backdoor
  • Multi-controller and Multi-port support
  • Tailor Made for Testbench Migration from IP level to SoC level
  • Includes the Application Layer

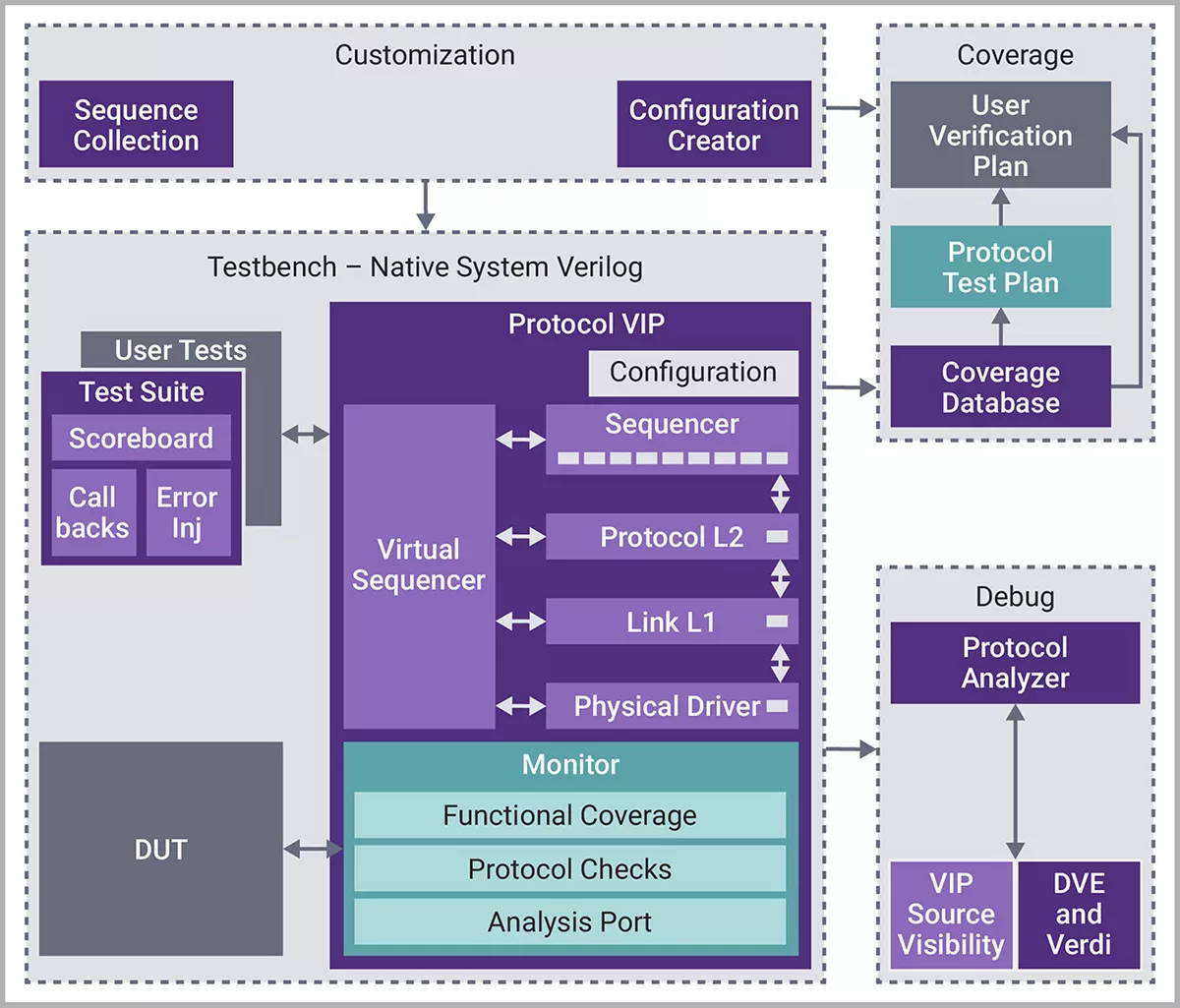

Block Diagram

Click to open fullscreen

Specifications

Identity

Part Number
Verification IP for eUSB 2 v2 and USB 2.0
Vendor
Synopsys, Inc.
Type
Verification IP

Standards & Interfaces

USB Standard
USB 2.0

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Synopsys, Inc.
HQ: USA
Contact Synopsys, Inc.
