Vendor: Silicon Storage Technology, Inc. Category: Flash

Embedded CMOS Flash memory IP with sector/chip Erase and byte Program capability

SuperFlash® is SST’s patented and proprietary NOR flash technology.

Contact Provider Request Datasheet

Overview

SuperFlash® is SST’s patented and proprietary NOR flash technology. With 80B+ devices shipped, SuperFlash is the non-volatile memory of choice for embedded applications.
In high-volume production since 1995, the technology relies on a split-gate cell design and thick oxide tunneling injector. SST continues to improve the technology, now in its third generation incarnation at advanced process nodes down to 28nm.
The technology has a number of distinct advantages. First, design using SuperFlash macro benefit from low power consumption during program due to low current source side injection and during erase due to low FN tunnelling current. Higher bandwidth is achievable because of the fast access time while the endurance and retention characteristics of the technology achieve best in class reliability. Manufacturability has been demonstrated at multiple process nodes and foundries. Finally, broad deployment of the technology across a variety of applications is enabled by customized solutions for various market segments.

Key features

  • SuperFlash technology
  • CMOS compatible
  • Up to 500K cycle endurance
  • > 10 years retention
  • Small sector erase
  • Fast program/erase time
  • Fast read access time
  • SSI programming
  • Small area
  • Up to 128Mb

Block Diagram

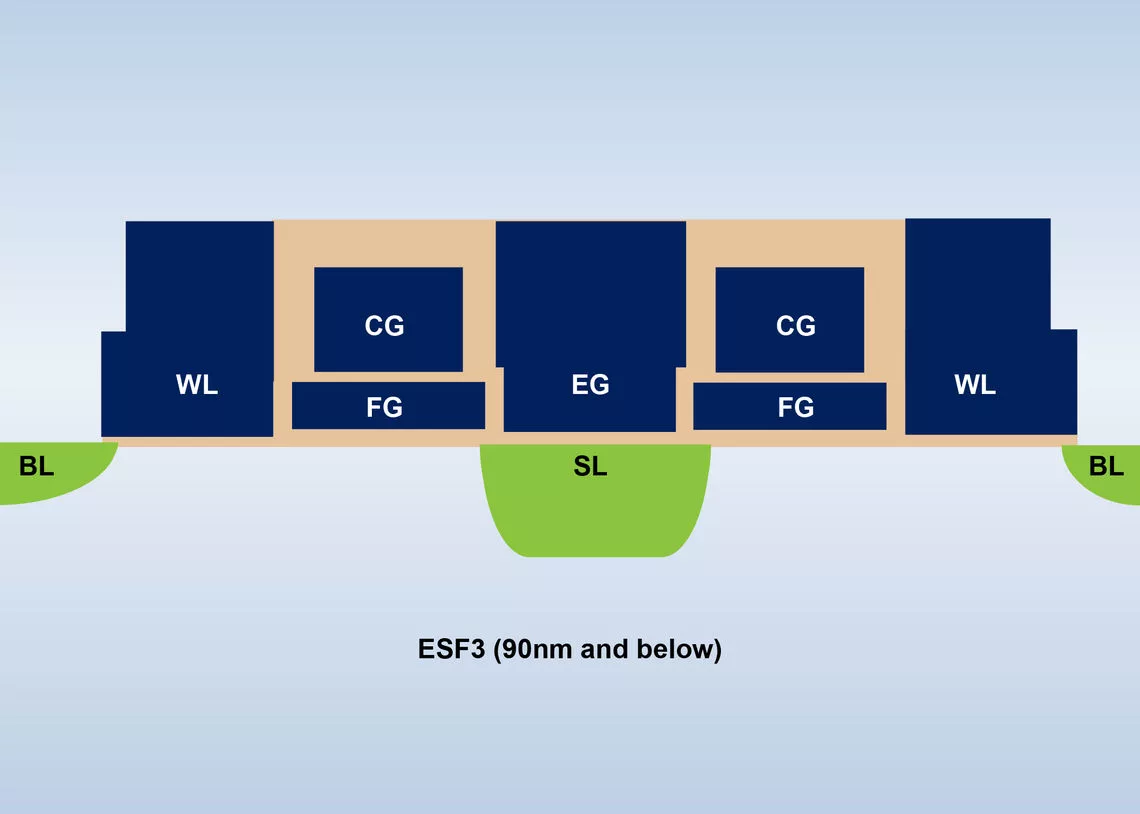

SST SuperFlash NVM, 28-500nm block diagram

Benefits

  • Silicon proven
  • Portable and Scalable
  • High reliability
  • Automotive grade
  • Low power
  • High performance
  • Low cost
  • Usage: Code/Data storage

Applications

  • Automotive,Communications,Consumer Electronics,Data Processing,Industrial and Medical,Others

What’s Included?

  • Verilog Model,.LIB File,.LEF File,GDS II File,LVS Netlist

Specifications

Identity

Part Number
SST SuperFlash NVM, 28-500nm
Vendor
Silicon Storage Technology, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Silicon Storage Technology, Inc.
