Display Controller – 4K Digital Cinema LCD Panels (AXI4/AXI Bus)

The DB9000AXI-DCI LCD Controller IP Core interfaces a video image in frame buffer memory via the AMBA 3.0 / 4.0 AXI Protocol Interconnect to a 4K and 2K Digital Cinema Initiative (DCI) High Definition TFT LCD panel.

The video image in frame buffer memory can be 8/10/12-bit YCrCb or RGB, with a Color Space Convert to match the source video to the TFT LCD panel requirements.

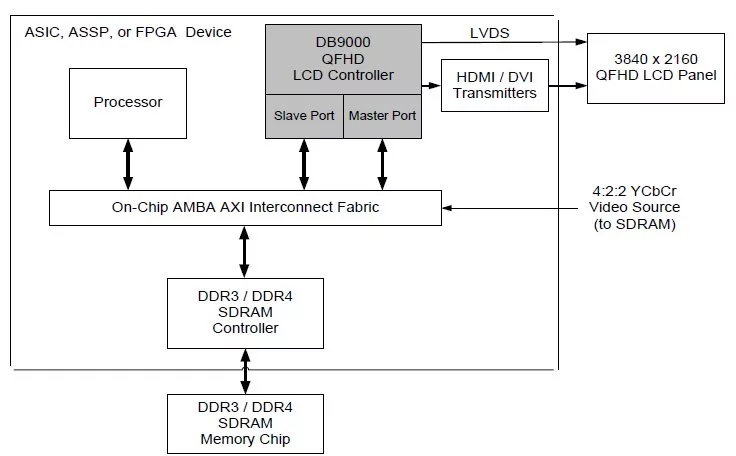

The DB9000AXI-DCI IP Core can be implemented in an ASIC, ASSP, or FPGA device with optionally an embedded microprocessor, an AMBA AXI Interconnect fabric, and SDRAM Controller for access to frame buffer memory. Typically, the microprocessor is an ARC, ARM, Intel, MicroBlaze, MIPS, RISC-V, NIOS II, OpenSPARC, PowerPC, or Tensilica processor and frame buffer memory is off-chip DDR3 / DDR4 SDRAM.

• Digital Cinema Initiative (DCI) formats:
  •  2K – 2048 x 1080 / 12-bit X’Y’Z’ / 24/48 frames per second
  •  4K – 4096 x 2160 / 12-bit X’Y’Z’ / 24 frames per second
• Additional High Resolution support:
  •  3840 x 2160 Quad / Ultra Full High Definition (QFHD) TFT LCD Panel
• High-Resolution TFT LCD Panel support features by AXI Protocol:
  •  Up to 16 overlap outstanding reads requests to the SDRAM Controller
  •  Quality of Service (QoS) Support (AXI4)
  •  Programmable burst lengths up to 16 beats (AXI3) & 256 beats (AXI4)
  •  Wide AXI Master Port data width, up to 256-bits
• Optional Features:
  • Video / Graphics Base Screen with 2-16 Overlay Windows
  •  αRGB Alpha Blending
  •  Color Space Conversion with Chroma Resampler
• Interface for 1,2, 8 Port TFT LCD Panel:
  •  24-bit digital (8 bits/color) LVDS / CMOS
• Interface to LVDS, DVI, HDMI, & DisplayPort Transmitters / Receivers
• Programmable frame buffer bits-per-pixel  (bpp) color depths:
  •   8,  10, 12 bits    YCrCb
  •  16, 18, 24 bits    RGB
• Color Palette RAM to reduce Frame Buffer memory storage requirements and AXI  Bus bandwidth (for lower color applications):
  •  256 entry by 16-bit RAM, implemented as 128 entry by 32-bits
• Programmable horizontal timing parameters:
  •  horizontal front porch, back porch, sync width, pixels-per-line
  •  horizontal sync polarity
• Programmable vertical timing parameters:
  • vertical front porch, back porch, sync width, lines-per-panel
  •  vertical sync polarity
• Programmable pixel clock:
  •  pixel clock divider from 1 to 128 of Bus Clock
  •  pixel clock polarity
• Programmable Data Enable timing signal:
  •  Derived from horizontal and vertical timing parameters
  •  display enable polarity
• AMBA AXI4 / AXI3 Interconnect:
  •  Selectable 256 / 128 / 64 AXI Master Port for DB9000AXI DMA access  of frame buffer memory for driving the display
  •  Selectable 256 / 128 / 64 AXI or AXI4-Lite Slave Port for control & status  interface to microprocessor
• Three memories:
  •  N-word x 256 / 128 / 64 bit input FIFO, decoupling AXI bus & LCD panel  clock rates. Integrated with DMA controller
  •  256-word x 24-bit Color Palette RAM
  •  16-word output FIFO
  •  FIFOs parameterizable in depth and width
• Power up and down sequencing support
• 9 sources of internal interrupts with masking control
• Little-endian, big-endian, or Windows CE mode
• AXI4 Bus  - Designed to AMBA AXI Protocol Specification (V2.0)
• AXI3 Bus  - Designed to AMBA AXI Protocol Specification (V1.0)
• Support in following Integrated Circuits:
• o ASIC / ASSP with AXI4 / AXI3 fabric
• o Altera or Xilinx FPGA with AXI fabric
• Fully-synchronous, synthesizable Verilog RTL core, with rising-edge clocking, No gated clocks, and No internal tri-states.

• The DB9000AXI-DCI IP Core contains programmable features comparable to entry-level ASSP DTV & LCD controller chips,targeting FPGA & ASIC designs.

• Verilog RTL Source or technology-specific netlist.
• Comprehensive testbench suite with expected results.
• Synthesis scripts.
• Installation & Implementation Guide.
• Technical Reference Manual.
