Constant False Alarm Rate Processor (CFAR)
The eSi-CFAR is an high throughput Constant False Alarm Rate (CFAR) IP core, whose main application area is automotive driver ass…
Overview
The eSi-CFAR is an high throughput Constant False Alarm Rate (CFAR) IP core, whose main application area is automotive driver assistance radar. It is normally applied post-FFT in order to scan output bins for objects in noise, with a pre-designed False Alarm (FA) probability. Pre-screening the FFT output bins in hardware reduces substantially the size of data transfers to the embedded processing system, and equally reduces computationally intensive embedded processing load.
Key features
- Single clock cycle processing per bin making it suitable for interfacing with Pipelined FFT cores.
- Parameterised input I/Q sample bit widths
- Single clock cycle sorting update algorithm for extracting ordered statistics;
- Real-time (per block) configuration of algorithm parameters;
- Parameterised input linear power samples (max 64 bits).
- Version for logarithmic domain for reduced area and power use
- Generalised Ordered Statistic (GOS) CFAR algorithms
- GOS Cell Averaging (CA) – CFAR;
- GOS Greatest Of (GO) – CFAR;
- GOS Smallest Of (SO) – CFAR;
- Cell Averaing (CA) CFAR algorithms
- Classical CA – CFAR;
- Greatest of (GO) CA - CFAR;
- Smallest of (SO) CA – CFAR;
- Cell Averaging Statistic Hofele (CASH) CFAR algorithms
- Concurrent operation of CASH/CA-CFAR core and GOS-CFAR core
- Conversion of linear input power samples in log2 (16-bit) domain
- Real-time configuration of algorithm parameters.
- Equivalent processing in logarithmic domain for reduced area and power use.
- AMBA 4 APB/AXI4-streaming interface

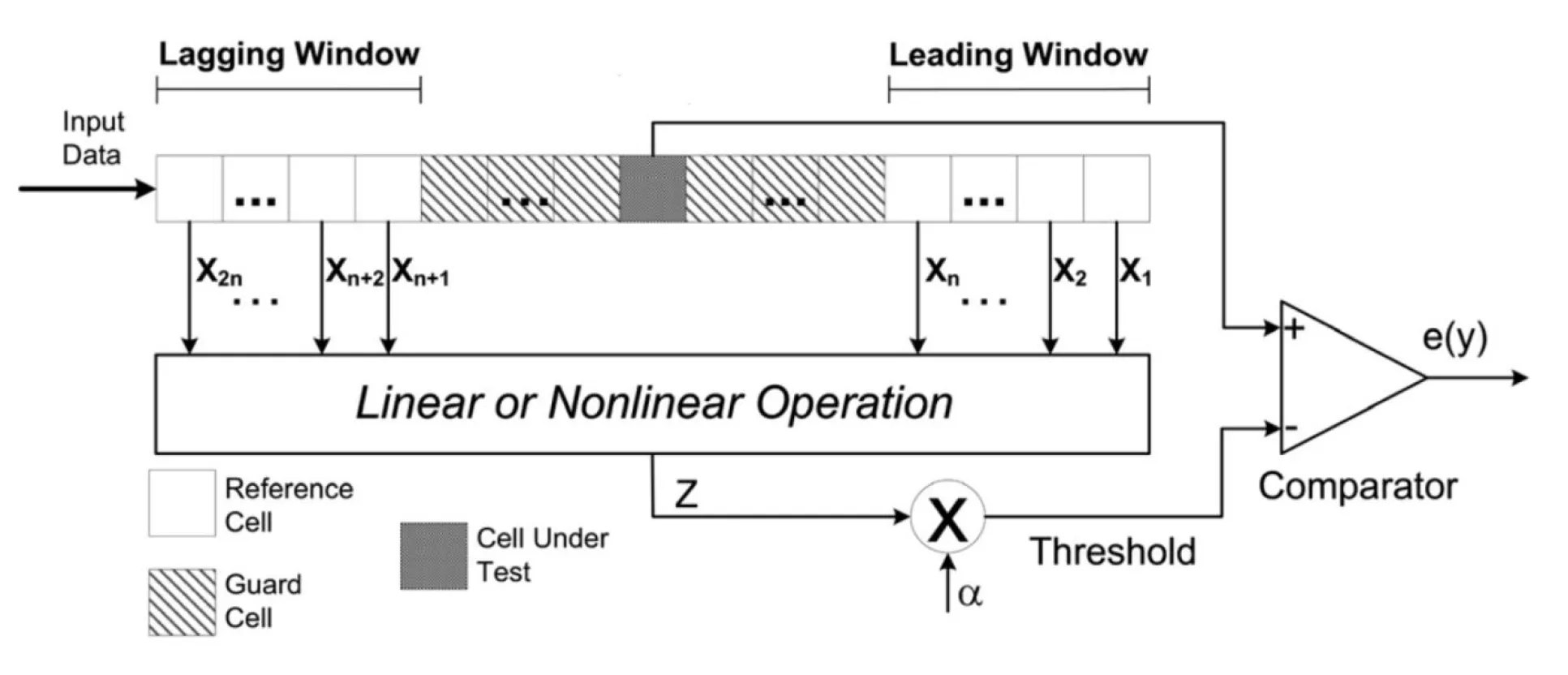

Block Diagram
eSi-CFAR block diagram
Benefits
- Removes a compute intensive task away from the microprocessor to a predictable, low-latency offload engine
- Enables more radar elements to be processed for greater driver security
- Portable to either ASIC or FPGA target architecture
- Silicon proven in ISO-26262 certified products
Applications
- Automotive driver assistance radar
- Roadside traffic management radar
- Military radar
What’s Included?
- RTL
- Testbench
- Synthesis scripts
- Documentation
- MATLAB and C++ bit exact model
- CUDA accelerated bit exact model
Specifications
Identity
Part Number
eSi-CFAR
Vendor
EnSilica
Type
Silicon IP
Provider
HQ:
UK
