Vendor: Canova Tech Srl Category: DC/DC Converter

Coin Battery Boost

CT21100 is high efficiency DCDC boost converter delivering 2.7V at 10mA from an input as low as 0.9V.

Contact Provider Request Datasheet

Overview

CT21100 is high efficiency DCDC boost converter delivering 2.7V at 10mA from an input as low as 0.9V.

Designed to work with a single alkaline/NiMh coin cell.

To improve efficiency with light load conditions, an asynchronous topology with Pulse Frequency Modulation (PFM) technique is implemented.

Key features

  • Input Voltage Range: 0.9V to 1.8V
  • (single alkaline or Ni-MH battery)
  • 10 mA maximum output
  • 18 uA quiescent current with no load
  • Fixed 2.7V output voltage
  • Modulation (PFM) technique

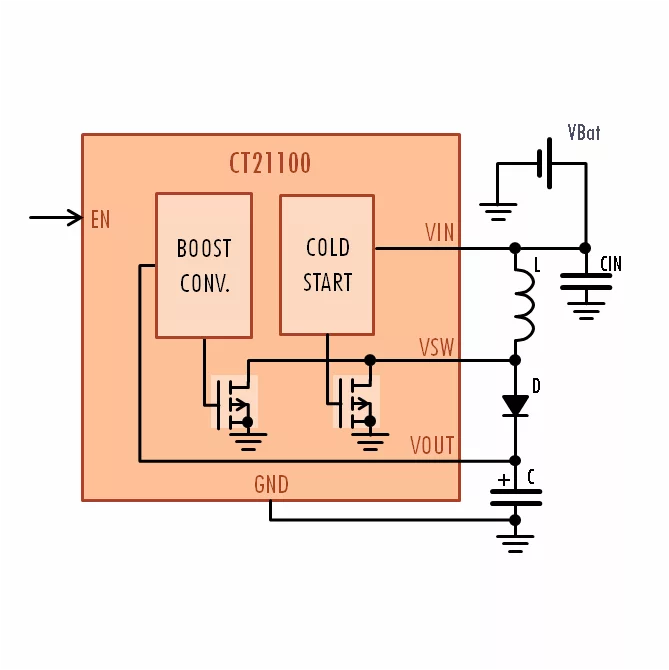

Block Diagram

CT21100 block diagram

Applications

  • Miniature Coin Battery supplied devices

Specifications

Identity

Part Number
CT21100
Vendor
Canova Tech Srl
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Canova Tech Srl
HQ: Italy
