CoaXPress Multi-Device Multi-Stream Host
The CoaXPress standard defines a cost effective and easy interfacing between video devices and acquisition hardware over RG59 and…
Overview
The CoaXPress standard defines a cost effective and easy interfacing between video devices and acquisition hardware over RG59 and RG6 coaxial cables. It enables hot-plug of devices and 24V power-over-cable with up to 13 Watts per cable.
A CoaXPress Device can support multiple cameras of many video stream formats. CoaXPress supports GenICam international standard, providing a generic programming interface for all kinds of cameras regardless of the interface technology.
Video streams are sent to a host at a selectable high-speed downlink connection rate from 1.25 Gbps to 6.25 Gbps per cable. Each device can transfer video streams over one or multiple cable connections; a quad-connection device can deliver a total throughput of 25 Gbps.
CoaXPress devices and cameras can be controlled from a host through the uplink connection at 20.83 Mbps. The CoaXPress standard also provides a low latency, accurate trigger interface between the devices and the host.
A CoaXPress Host can interface with one or more camera devices, each of one or multiple cables. The CoaXPress standard supports up to 256 video streams.
A CoaXPress Device can support multiple cameras of many video stream formats. CoaXPress supports GenICam international standard, providing a generic programming interface for all kinds of cameras regardless of the interface technology.
Video streams are sent to a host at a selectable high-speed downlink connection rate from 1.25 Gbps to 6.25 Gbps per cable. Each device can transfer video streams over one or multiple cable connections; a quad-connection device can deliver a total throughput of 25 Gbps.
CoaXPress devices and cameras can be controlled from a host through the uplink connection at 20.83 Mbps. The CoaXPress standard also provides a low latency, accurate trigger interface between the devices and the host.
A CoaXPress Host can interface with one or more camera devices, each of one or multiple cables. The CoaXPress standard supports up to 256 video streams.
Key features
- JIAA CXP-001-2013 CoaXPress 1.1 compliant
- Hardware-based Automatic Discovery, with software interface enabling manual link configuration
- Independent downlink connection rates, from 1.25 Gbps to 6.25 Gbps
- Up to 8 coaxial connections per Host IP, enabling all connection topologies, from 1 to 8 devices of 1 to 8 connections each
- Supports multiple video-streams per device, for a total of up to 256 independent stream IDs per Host IP
- Support all GenICam compliant image formats: rectangular and arbitrary shaped, area and line scan, single and multi tap, multiple regions of interest, all standard pixel formats
- Hardware-based video-stream management: automated error detection and recovery at image-level
- Trigger in/out interface with uplink latency of 3.4µs
- Optional 8in/8out GPIO interface compliant with JIAA NIF-001-2010 CoaXPress 1.0 standard
- AXI4-lite slave processor interface for application specific control of host and cameras
- AXI4-stream master interface per downlink for video streams, running at up to 200 MHz
- Xilinx7 series and UltraScale compatible, IP-XACT support
Block Diagram

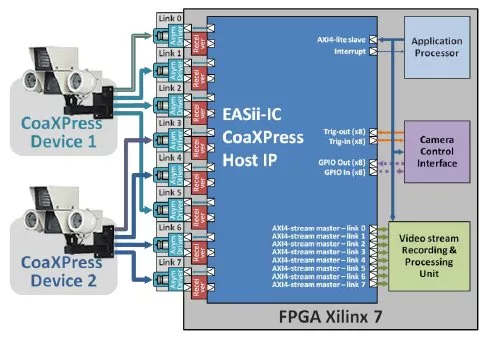

EASii IC CxP Host IP block diagram
What’s Included?
- Single or multi-use license, encrypted source code or netlist
- Encrypted source code: VHDL RTL with synthesis scripts for Vivado
- Netlist: EDIF or Verilog
- Comprehensive documentation package: specification, integration, IP-XACT component, etc.
- Integration test-suite
Specifications
Identity
Part Number
EASii IC CxP Host IP
Vendor
EASii IC
Type
Silicon IP
