CXP DEVICE IIP

CXP Device core is compliant with standard CXP specification as 1.1/1.1.1/2.0. Through its compatibility, it provides a simple interface to a wide range of low-cost devices. CXP Device IIP is proven in FPGA environment. The host interface of the CXP can be simple interface or can be AHB, AHB-Lite, APB, AXI, AXI-Lite, Tilelink, OCP, VCI, Avalon, PLB, Wishbone or custom buses.

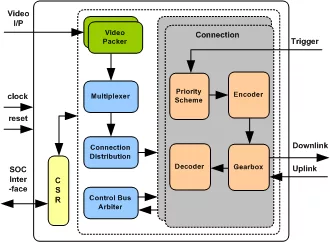

CXP DEVICE IIP is supported natively in Verilog and VHDL

• Compliant with CXP Specification 1.1/1.1.1/2.0.
• Full CXP Device functionality.
• Supports upto 4 connections.
• Supports following Channels,
• Stream Channel
• I/O Channel
• Control Channel
• Supports 8,10,12,14,16 bit depth.
• Supports following bit rates for high speed down connection.
• 1.25 Gbps
• 2.50 Gbps
• 3.125 Gbps
• 5.00 Gbps
• 6.25 Gbps
• 10 Gbps
• 12.5 Gbps
• Supports following bit rates for low speed up connection.
• 20.83 Mbps
• 41.66 Mbps
• Supports 8B/10B Encoding and 10B/8B Decoding.
• Supports packing of all the video formats supported by the CXP v2.0 specification.
• Supports the following color formats.
• Raw
• Mono
• Planar_1 to Planar_15
• BayerGR
• BayerRG
• BayerGB
• BayerBG
• RGB
• RGBA
• YUV_411, YUV_422, YUV_444
• YCbCr_601_411,YCbCr_601_422,YCbCr_601_444
• YCbCr_709_411,YCbCr_709_422,YCbCr_709_444
• Supports Bootstrap register set as per CXP v2.0 specification.
• Supports packet multiplexing from different streams.
• Supports connection test facilities to test the quality of the connection.
• Supports Unified Time Stamping as per CXP version 2.0 specification.
• Supports link Sharing as per CXP version 2.0 specification.
• Supports backward compatibility for version 1.1.1 specification.
• High speed up connection with maximum bit rate of 6.25 Gbps
• Low speed up connection with 20.83 Mbps bit rate
• HsUpConnection bootstrap register is used to indicate the HS up connection support.
• Fully synthesizable
• Static synchronous design
• Positive edge clocking and no internal tri-states
• Scan test ready
• Simple interface allows easy connection to microprocessor/microcontroller devices

• Single site license option is provided to companies designing in a single site.
• Multi sites license option is provided to companies designing in multiple sites.
• Single Design license allows implementation of the IP Core in a single FPGA bitstream and ASIC.
• Unlimited Designs, license allows implementation of the IP Core in unlimited number of FPGA bitstreams and ASIC designs.

• The CXP Device interface is available in Source and netlist products.
• The Source product is delivered in plain text verilog. If needed VHDL,SystemC code can also be provided.
• Easy to use Verilog Test Environment with Verilog Testcases
• Lint, CDC, Synthesis, Simulation Scripts with waiver files
• IP-XACT RDL generated address map
• Firmware code and Linux driver package
• Documentation contains User's Guide and Release notes.
