Baseband power amplifier with attenuator
PA consists of attenuator, 1-stage amplifier with tunable gain.
Overview
PA consists of attenuator, 1-stage amplifier with tunable gain. Attenuator reduces output power by 1dB from 0 to 60 dB. The amplifier gain is adjustable in increments of 2 dB.
Key features
- TSMC 65 nm CRN65LP
- Differential inputs, outputs
- High frequency 2 – 100 MHz
- Available attenuation range from 0 to 60 dB (step by 1 dB)
- Power amplifier with high IM3
- Maximum Output Power 14 dBm
- Portable to other technologies (upon request)
Block Diagram

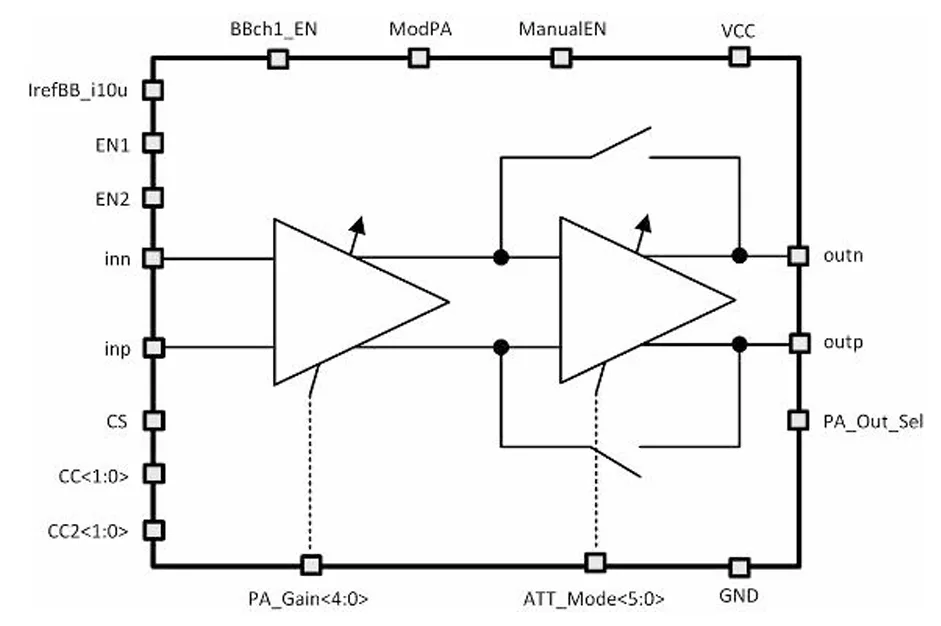

065TSMC_PA_02 block diagram
Applications
- PA signal processing
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
