APB4 Multiplexer
The AMBA APB v2.0 bus protocol – commonly referred to as APB4 – defines a low-cost interface that is optimized for minimal power …
Overview
The AMBA APB v2.0 bus protocol – commonly referred to as APB4 – defines a low-cost interface that is optimized for minimal power consumption and reduced interface complexity. To enable a single APB4 Master to communicate with multiple APB4 Slaves (Peripherals) via a common bus, certain signals require multiplexing – the Roa Logic APB4 Multiplexer is a fully configurable & parameterized IP to provide this functionality.
Key features
- Full support for APB version 2.0 (APB4) protocol
- Fully parameterized IP with:
- User Configurable number of peripherals supported
- User Configurable address and data widths
- Support for user defined address mapping per peripheral

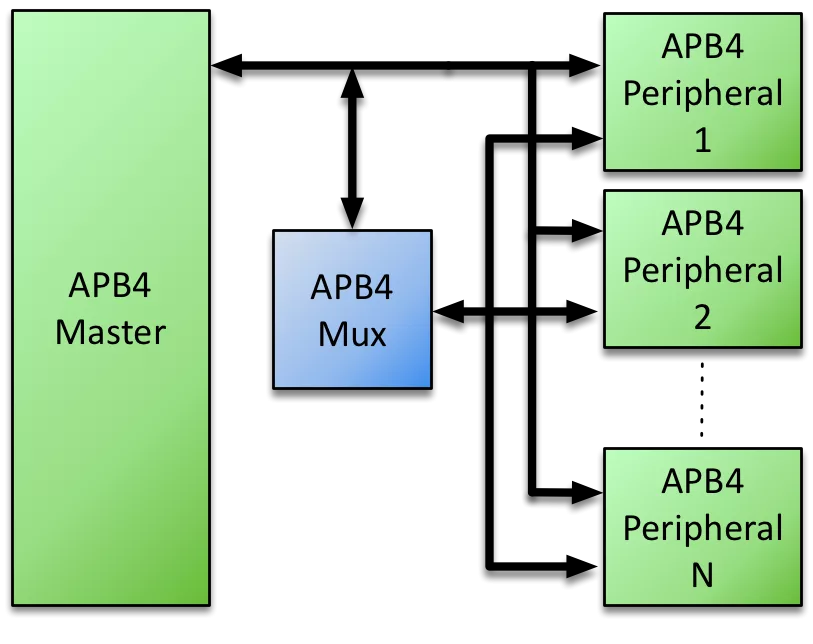

Block Diagram
APB4 Multiplexer block diagram
What’s Included?
- Full Source Code
- Testbenches
- Compilation Scripts
- Documentation
Specifications
Identity
Part Number
APB4 Multiplexer
Vendor
Roa Logic BV
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
The Netherlands
