AMBA AXI4 Verification IP

The AMBA AXI4 Verification IP provides an effective & efficient way to verify the components interfacing with AMBA® AXI4 bus of an IP or SoC. The AMBA AXI4 VIP is fully compliant with standard AMBA® AXI4 specification from ARM. This VIP is a light weight VIP with easy plug-and-play interface so that there is no hit on the design cycle time.

• Compliant to AMBA® AXI4 specifications from ARM and
• supports for all variants of AXI4, AXI4-Lite and AXI4 Stream.
• Support for all type of AMBA AXI4 devices.
• Strong protocol checking Bus Monitor which also provides statistics of the transactions.
• Parameterized data and address bus.
• Supports for all protocol Burst Types, Burst Lengths and Response Types.
• Configurable modes for Valid and Ready on different channels.
• Rich set of configuration parameters to control AXI4 functionality.
• Supports FIFO, memory and Cache Model integrated.
• Supports Privilege and Secure accesses.
• Supports out of order transactions with parametrized out of order width.
• Supports data interleaving on read data channel.
• Supports Endianess check and conversion.
• Supports exclusive transfers and configurable Memory.
• Supports UVM_RAL Model.
• Provides detailed performance monitoring for all the transfers.
• Supports advanced SystemVerilog features like constrained random testing.
• Supports dynamically configurable modes.
• Strong Protocol Monitor with real time exhaustive programmable checks.
• Supports Dynamic as well as Static Error Injection scenarios.
• On the fly protocol checking using protocol check functions, static and dynamic assertion.
• Built in Extensive Coverage Across the Channels.
• Provides a comprehensive user API (callbacks) in all BFMs.
• Graphical analyser to show transactions for easy debugging.

• Available in native SystemVerilog (UVM/OVM/VMM) and Verilog
• Unique development methodology to ensure highest levels of quality
• Availability of various Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and cover points with connectivity example for all the components
• Consistency of interface, installation, operation and documentation across all our VIPs
• Provide complete solution and easy integration in IP and SoC environment

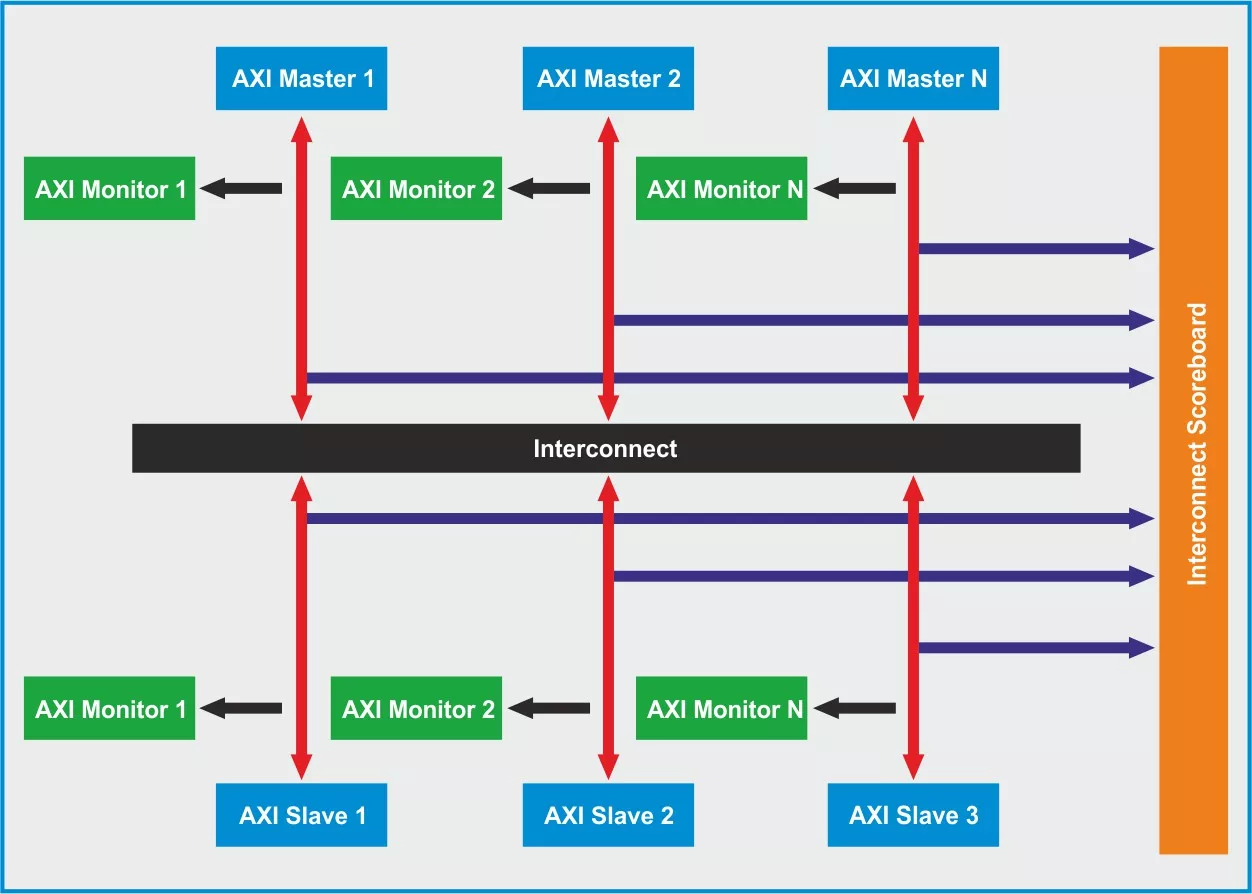

• AMBA AXI4 Master/Slave Agent
• AMBA AXI4 Bus Monitor and Scoreboarding
• AMBA AXI4 Interconnect Model (Optional)
• Test Environment & Test Suite :
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Assertions & Cover Point Tests
• Integration Guide, User Manual and Release Notes
