AMBA AXI5 Verification IP

The AMBA AXI5 Verification IP provides an effective & efficient way to verify the components interfacing with the AMBA® AXI5 bus of an IP or SoC. The AMBA AXI5 VIP is fully compliant with standard AMBA® AXI5 specifications from ARM. This VIP is a lightweight VIP with an easy plug-and-play interface so that there is no hit on the design cycle time.

• AXI5 VIP is Compliant with the latest ARM™ AMBA AXI5 & AXI5 lite.
• It is also compatible with AXI3, AXI4 Protocol Specification v2.0 referred to as AXI4 and AXI4-Lite.
• Supports Unique ID feature for both read and write transactions.
• Supports MTE(Memory Tagging Extension) feature to detect memory safety violations.
• Supports Read data chunking of 128-bit granules this permits subordinates to return the data in any order. Complete reordering will be supported by the manager's side.
• Supports MPAM(Memory Partitioning and Monitoring) technology for partitioning and monitoring memory system resources for physical and virtual machines.
• Supports Untranslated transactions and Read data interleaving feature.
• Supports Byte parity check signals for byte parity interface protection.
• Supports all Atomic transactions AtomicStore, AtomicLoad, Atomicswap, and Atomic compare
• Supports 8 different operations like add, clr, eor,set,smax,smin,umax, and umin which can be used with atomicstore and atomic load.
• Support Data checking and Poison signal also which can be used to detect and potentially correct, data bytes which have become corrupted.
• Trace signals are there for debugging, tracing, and performance measurement of systems.
• Support for additional interface signals that enable a slave to indicate the minimum QoS value of transactions that it accepts.
• Support for user Loopback signaling.
• Supports signals that enable access to particular Non-secure memory locations to be controlled
• Supports Wake-up Signaling mechanism
• Support for all type of AMBA AXI5 devices:
  • Master Agent
  • Slave Agent
• Strong protocol checking Bus Monitor which also provides statistics of the transactions
• Parameterized data and address bus
• Support for all protocol Burst Types, Burst Lengths and Response Types
• Configurable modes for valid and Ready on different channels
• Internal Architecture Based on TLM 2.0
• Rich set of configuration parameters to control AXI5 functionality
• Supports callback in Master and Slave
• AXI5 Verification IP comes with Extensive Coverage Across the Channels
• Supports FIFO, memory and Cache Model integrated
• VIP supports privileged and Secure access
• Supports out of order transaction with Parameterized out of order width
• Supports data interleaving on read data channel
• Supports Endianess check and conversion
• Rich set of error injections
• Supports exclusive transfers
• Dynamic configuration is supported
• Support UVM_RAL Model
• Configurable Memory
• Provides detailed performance monitoring for all the transfers.
• Support GUI analyzer for easy debugging.
• Supports 256 Beat Bursts for INCR.
• Supports interconnect scoreboard for checking data integrity across interconnects.

• Available in native System Verilog (UVM/OVM/ VMM) and Verilog
• Unique development methodology to ensure the highest levels of quality
• Availability of Compliance & Regression Test Suites
• 24X5 customer support
• Unique and customizable licensing models
• Exhaustive set of assertions and coverage points with connectivity examples for all the components
• Consistency of interface, installation, operation, and documentation across all our VIPs
• Provide complete solutions and easy integration in IP and SoC environment

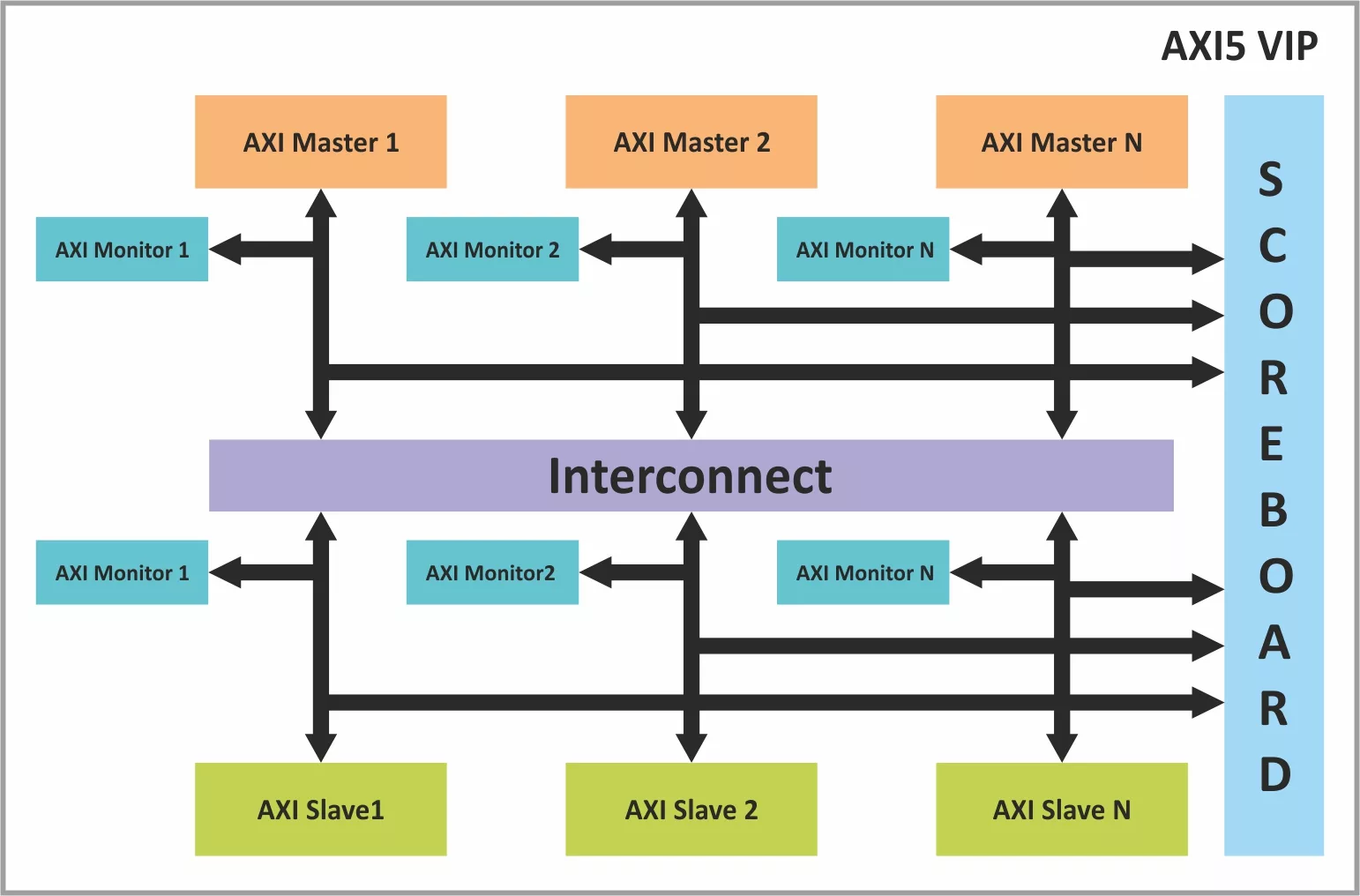

• AMBA AXI5 Master/Slave Agent
• AMBA AXI5 Bus Monitor and Scoreboard
• AMBA AXI5 Interconnect Scoreboard
• AMBA AXI5 Interconnect Model (Optional)
• Test Environment & Test Suite:
  • Basic and Directed Protocol Tests
  • Random Tests
  • Error Scenario Tests
  • Assertions & Cover Point Tests
• Integration Guide, User Manual, and Release Notes
