Vendor: Silvaco, Inc. Category: Protocol Bridge

APB to AHB-Lite Asynchronous Bridge

The APB to AHB-Lite Asynchronous Bridge translates an APB bus transaction (read or write) on one clock domain to an AHB Lite bus …

Overview

The APB to AHB-Lite Asynchronous Bridge translates an APB bus transaction (read or write) on one clock domain to an AHB Lite bus transaction on a second (asynchronous) clock domain. This allows two completely independent AHB-Lite systems to communicate and share data. The bridge is implemented as two state machines - one on the initial or “A” domain and another on the secondary or “B” domain, and several synchronizers. The APB to AHB-Lite Asynchronous Bridge acts as an APB Slave component on the “A” domain, and an AHB-Lite Master component on the “B” domain.

Key features

  • Translates AMBA® APB transactions to AMBA® AHB Lite transactions
  • Interfaces two totally asynchronous APB and AHB-Lite domains
  • Supports any ratio of relative clock frequencies
  • Low Gate Count
  • Conforms to APB and AHB-Lite signaling rules

Block Diagram

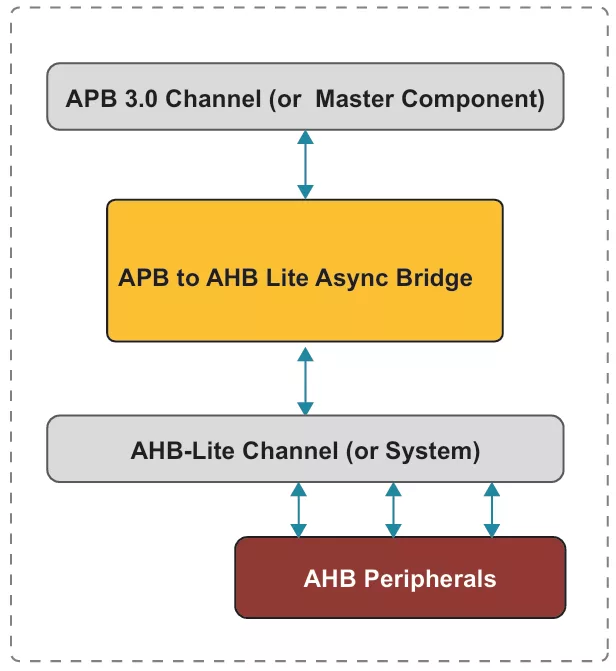

APB to AHB-Lite Asynchronous Bridge block diagram

What’s Included?

  • Verilog Source
    Complete Test Environment
    Bus Functional Model

Specifications

Identity

Part Number
70149
Vendor
Silvaco, Inc.
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Silvaco, Inc.
HQ: United States
