6MHz 3.3V Low Power Oscillator - ±1% after trimming. Re-targetable to 1-30MHz - Silterra 0.18µm

This macro-cell is a low-power, precision, general purpose 3.3V 6MHz ±1% PVT internal oscillator core aimed for clock generation.

Silterra 180nm G View all specifications

Overview

This macro-cell is a low-power, precision, general purpose 3.3V 6MHz ±1% PVT internal oscillator core aimed for clock generation. A 7 bit digital bus allows frequency adjustment against process variations.

It features a self-biased, built-in references.

The core can be easily retargeted to any other frequencies between 1MHz and 30MHz and other CMOS technology that includes poly resistors.

Key features

  • 6MHz +/- 1% PVT after trimming
  • Supply 3.3V +/- 10%
  • Low power (20uA)
  • Low TC (>115ppm/oC)
  • 7-bit trimming
  • Self-biased, built-in references
  • Indicative area: 0.015mm2
  • Load capacitance: <100fF

Block Diagram

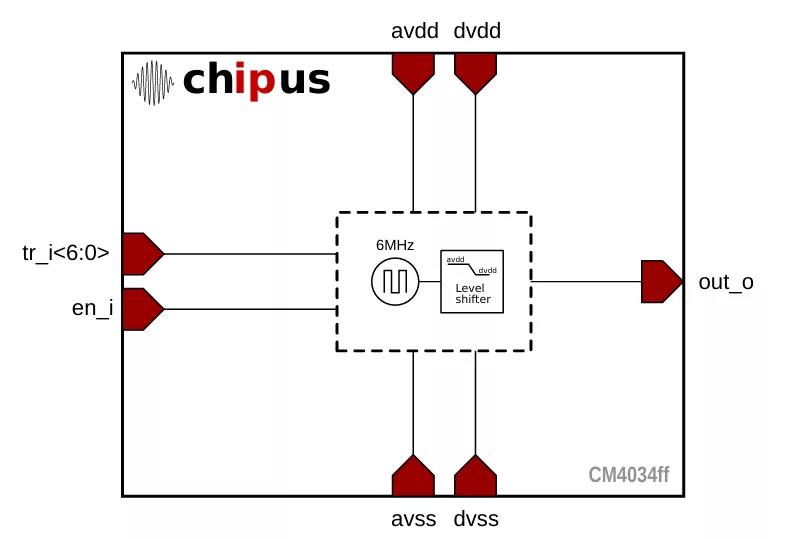

CM4034ff block diagram
