NTLab
Category:
Amplifier
65 ... 3000 MHz low noise amplifier
Low-noise amplifier (LNA) is used to amplify weak signal at receiver input.
Overview
Low-noise amplifier (LNA) is used to amplify weak signal at receiver input. LNA has a commutator to select necessary frequency sub-band and adjustable resonant circuit to fine-tune. Amplifier includes an integrated inductors and uses minimum off-chip components.
The LNA is designed using TSMC 65 nm CRN65LP technology.
Key features
- TSMC CMOS 65 nm
- Operating frequency range 65…3000 MHz
- Single differential input
- High linearity
- High dynamic range
- Wide range variable gain -25…+20 dB
- Supported foundries: TSMC, UMC, Global Foundries, SMIC
Block Diagram

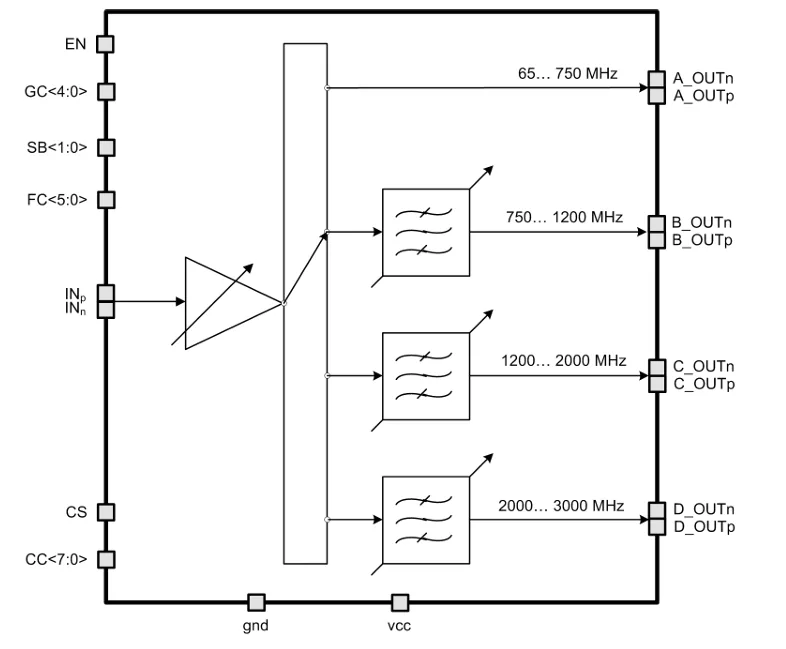

065TSMC_LNA_10 block diagram
Applications
- Front-end high frequency signal amplification in receivers
What’s Included?
- Schematic or NetList
- Abstract model (.lef and .lib files)
- Layout view (optional)
- Behavioral model (Verilog)
- Extracted view (optional)
- GDSII
- DRC, LVS, antenna report
- Test bench with saved configurations (optional)
- Documentation
Silicon Options
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| TSMC | 65nm | GP | Silicon Proven |
Specifications
Identity
Part Number
065TSMC_LNA_10
Vendor
NTLab
Type
Silicon IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
Lithuania
Learn more about Amplifier IP core
