64b-66b Verification IP
The 64b-66b Verification IP provides an effective &efficient way to verify the 64b-66b components of an IP or SoC.
Overview
The 64b-66b Verification IP provides an effective &efficient way to verify the 64b-66b components of an IP or SoC. The VIP is fully compliant with the 64b-66b Specification. The VIP is lightweight with easy plug-and-play components so that there is no hit on the design cycle time
Key features
- Encoding of 64-bit payload into 66-bit entity.
- Decoding of a 66-Bit entity into 64-bit payload.
- Scrambling is not intended to encrypt the data but to ensure that a relatively even distribution of one’s and zero’s are found in the transmitted data.
- Industry-compatible special character coding.
- Technologies that are used 64b-66b
- 10GB Ethernet (Most varieties)
- Fibre channels 10GFC and 16 GFC
- 100 Gb Ethernet
- 10G-EPON, 10 Gbit/s Ethernet Passive Optical Network
- Aurora, From Xilinx
- Infiniband
- Thunderbolt

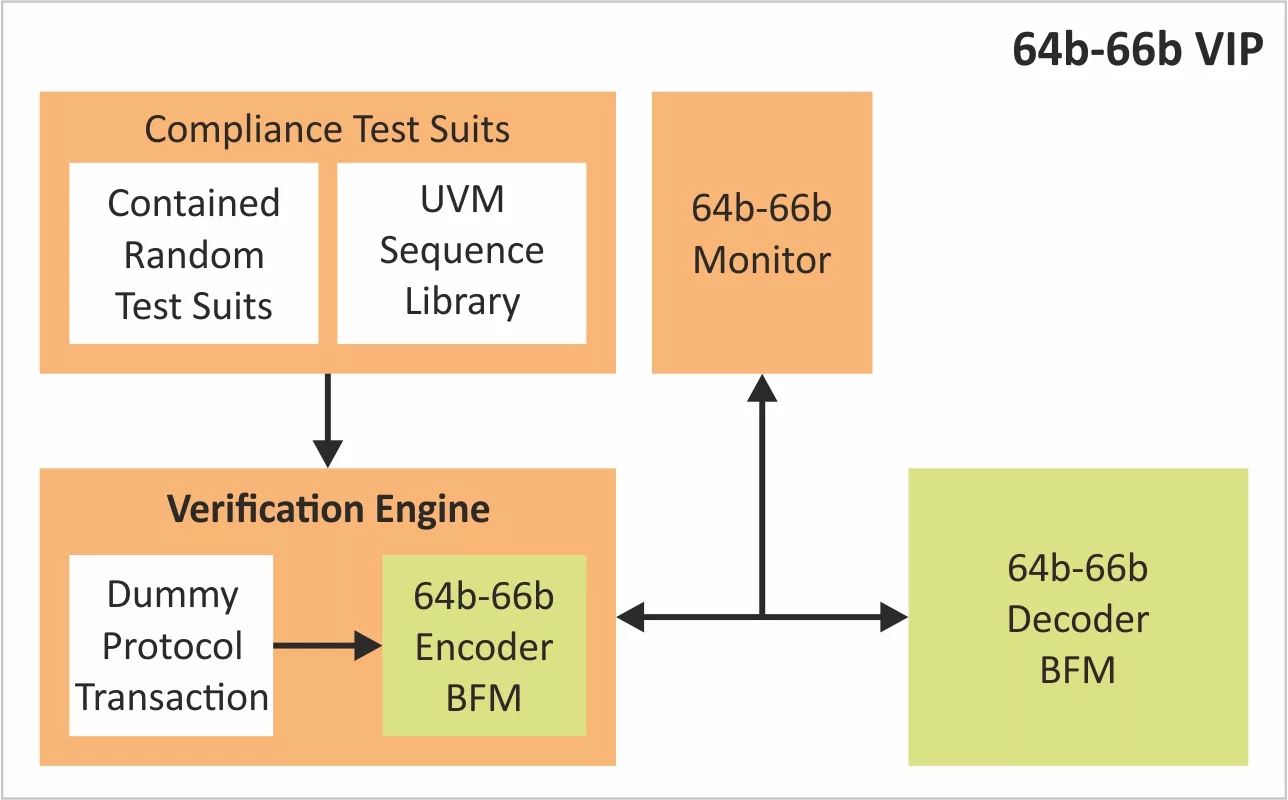

Block Diagram
64b / 66b block diagram
Benefits
- Available in native System Verilog (UVM/OVM/VMM) and Verilog
- Unique development methodology to ensure the highest levels of quality
- Availability of Compliance & Regression Test Suites
- 24X5 customer support
- Unique and customizable licensing models
- Exhaustive set of assertions and coverage points with connectivity examples for all the components
- Consistency of interface, installation, operation, and documentation across all our VIPs
- Provide complete solutions and easy integration in IP and SoC environment
What’s Included?
- 64b-66b Encoder BFM
- 64b-66b Decoder BFM
- 64b-66b Monitor
- Testbench Configurations
- Test Suite (Available in Source code)
- Basic and Directed Protocol Tests
- Random Tests and Error Scenario Tests
- Assertions & Cover Point Tests
- Integration Guide, User Manual, and Release Notes
Specifications
Identity
Part Number
64b / 66b
Vendor
Truechip Solutions
Type
Verification IP
Files
Note: some files may require an NDA depending on provider policy.
Provider
HQ:
USA
