512-bit EEPROM IP with configuration 16p2w16bit

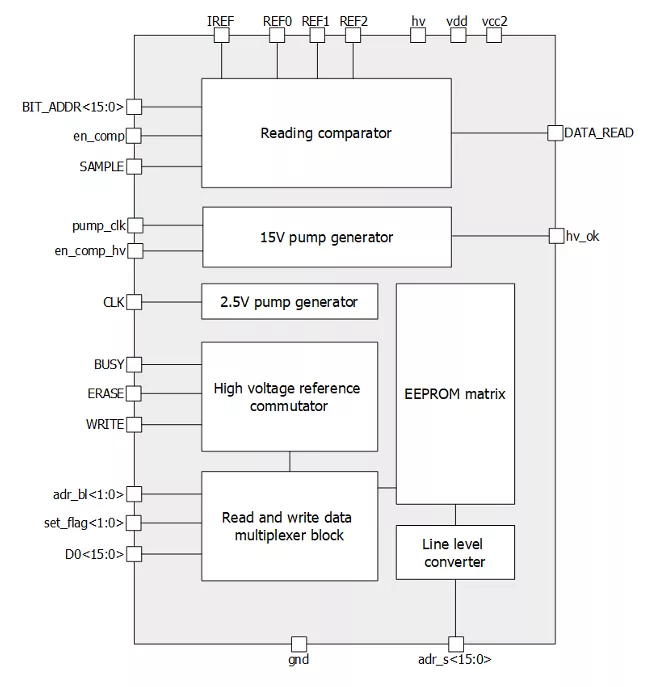

The block is a nonvolatile electrically erasable programmable read-only memory (EEPROM) with volume 512 bits (16(bit per word) x 2(word per page) x 16(page)), which is organized as 16 pages of 2 words by 16 bit with single-bit output data and parallel write data.

Write EEPROM page data comes to input D0<15:0> and write by words to latch through the signal SAMPLE, while the signal write in a state of «1». The address of a word written down in latches is defined by two low bits of the bus adr_bl<1:0>.

Set of flags that define the words that will be erased/written to the page is produced by signals set_flag <1:0>. Erasing of words from page, that correspond to the flags, performed by setting a signal BUSY, with the signal ERASE is at state «1». The address of erased page is defined by four high bits of the bus adr_s<15:0>. Value of the bus adr_s<15:0> doesn't change throughout all cycle of deleting (while BUSY = «1»).

Data writing from latches to the words of page corresponding to flags, is produced by signal setting BUSY, thus the signal WRITE is in a state «1». The address of writeable page is defined by four high bits of the bus adr_s<15:0>.

Memory is optimized for usage in the industrial and commercial applications, requiring low power consumption and supply voltage.

• SMIC EEPROM CMOS 0.18 um
• High density of memory cells
• Writing and erasing data by one high-voltage pulse
• Programming and erase time – 2 ms
• Page writes allowed
• Data retention over 10 years (endurance 100,000 cycles)
• Low power dissipation in standby and active mode
• Internally organized 16(bit per word) x 2(word per page) x 16(page) bit
• Portable to other technologies (upon request)

• Access control systems
• Radio-frequency identification systems, smart cards
• Electronic devices with battery power
• Chip serial ID and chip safety
• Electronic tags UHF band

• Schematic
• GDSII
• Abstract view (.lef and .lib files)
• DRC, LVS, antenna reports
• Datasheet
