1 Kbyte EEPROM IP · 64 pages × 8 words × 16 bit

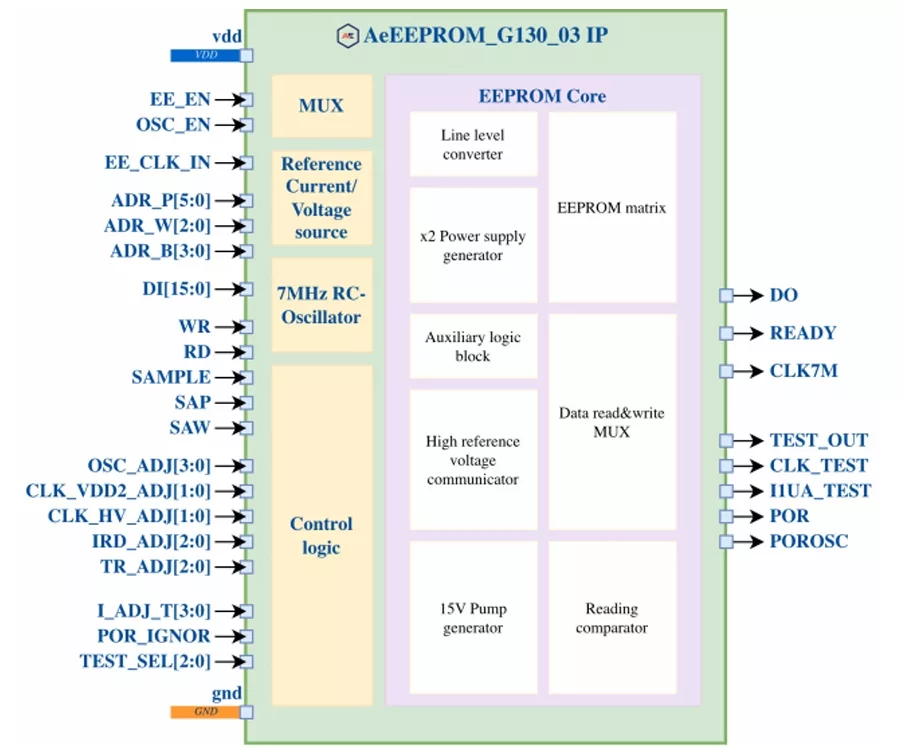

AeEEPROM_G130_03 is a non-volatile electrically erasable programmable read-only memory (EEPROM) IP with 1 Kbyte capacity, organized as 64 pages of 8 words by 16 bits with parallel word write and single-bit read output. Data is written and erased by a single high-voltage pulse with fully automatic erase/program sequencing; a built-in 7 MHz RC-oscillator provides internal clocking with a glitchless clock output. The block is optimized for industrial and commercial applications requiring low power consumption and low supply voltage, and is implemented in GF Embedded EEPROM 0.13µm technology in a compact 0.179mm² footprint.
KEY PARAMETERS
| Parameter | Condition | Min | Typ | Max | Unit |
| Supply voltage | – | 1.1 | 1.2 | 1.3 | V |
| Operating temperature range | – | –40 | +27 | +125 | °C |
| Output clock frequency | Built-in oscillator, default adj. | 5.3 | 7.0 | 10.2 | MHz |
| Read setup time | Relative to read signal | 10 | – | – | µs |
| Access time | Read | – | 0.15 | 0.35 | µs |
| Programming time | One word (erase + write) | – | 2.1 | – | ms |
| Current consumption, read mode | Excl. oscillator and ref. source | 2.9 | 3.8 | 7.6 | µA |
| Current consumption, write mode | Average / peak | 22.0 / 38.0 | 28.9 / 53.5 | 49.5 / 73.6 | µA |
| Standby current | VDD = 1.2 V, T = 27…125 °C | – | – | 0.1–2.2 | µA |
| Area | – | – | 0.179 | – | mm² |
| Block dimensions | Height × Width | – | 484.9 × 370.2 | – | µm |
| Foundry | Node | Process | Maturity |
|---|---|---|---|
| GlobalFoundries | 130nm | 130 1300 nm | Silicon Proven |
Note: some files may require an NDA depending on provider policy.
1 Kbyte EEPROM IP is a EEPROM IP core from Aftera listed on Semi IP Hub. It is listed with support for globalfoundries Silicon Proven.
