50G Ethernet Verification IP

The 50G Ethernet Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interfa…

Contact Provider Request Datasheet
Verification IP View all specifications

Overview

The 50G Ethernet Verification IP provides an effective & efficient way to verify the components interfacing with Ethernet interface of an IP or SoC

The 50G Ethernet VIP is fully compliant with IEEE standard 802.3-2018 specification. This VIP is lightweight with an easy plug -and play interface so that there is no hit on the design cycle time.

Key features

  • Provides 50 Gb/s as perIEEE standard 802.3-2018 specification
  • Supports standard MII interface for 50G
  • Supports 50G BASE- KR, SR, FR, LR
  • Supports (544, 514)Reed Solomon FEC
  • Four-lane PCS for 50G BASE-R
  • Supports PMD training protocol
  • Supports Auto-negotiation for link speed negotiation
  • Supports Energy Efficient Ethernet
  • Supports clock data recovery(CDR).
  • Supports Pause Frame-Based Flow Control
  • Supports test pattern generation and checking
  • Supports Management data Input/output registers.
  • Supports full-duplex operation.
  • Callback support in all Layers to provide user control.
  • Rich set of configuration and parameters
  • Supports Dynamic as well as Static Error Injection scenarios.
  • On the fly protocol checking
  • Static and Dynamic assertion.
  • Built-in Coverage analysis.
  • Graphical analyzer to show transactions for easy debugging

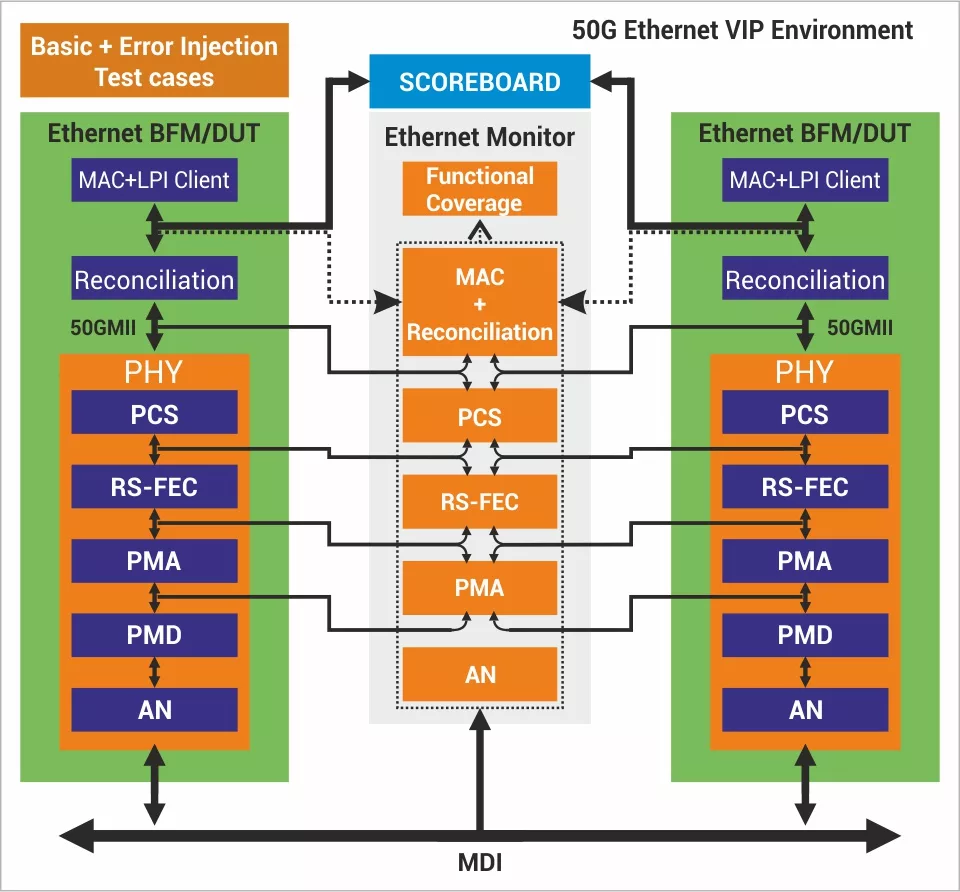

Block Diagram

50G/25G block diagram

Benefits

  • Available in native System Verilog (UVM/OVM/ VMM) and Verilog
  • Unique development methodology to ensure the highest levels of quality
  • Availability of Compliance & Regression Test Suites
  • 24X5 customer support
  • Unique and customizable licensing models
  • Exhaustive set of assertions and coverage points with connectivity example for all the components
  • Consistency of interface, installation, operation, and documentation across all our VIPs
  • Provide complete solution and easy integration in IP and SoC environment

What’s Included?

  • MAC layer
  • Reconciliation layer
  • PCS layer
  • Reed Solomon FEC layer
  • PMA layer
  • PMD layer
  • AN layer
  • Ethernet 25G layered monitors and scoreboard
  • Test environment and Test Suite
    • Basic Tests
    • Error injection tests
    • Assertions & Cover Point Tests
    • User Test Suite
  • Integration Guide, User Manual, and Release Note
  • GUI analyzer to view simulation packet Flow

Specifications

Identity

Part Number
50G/25G
Vendor
Truechip Solutions
Type
Verification IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

Contact Truechip Solutions
