Vendor: NTLab Category: PLL

50 - 800 MHz phase-locked loop

The synthesizer forms clock signal with frequency from 50 to 800 MHz.

Contact Provider Request Datasheet
TSMC 65nm GP Silicon Proven View all specifications

Overview

The synthesizer forms clock signal with frequency from 50 to 800 MHz. It consists of the ring VCO with frequency from 400 to 800 MHz, a programmable feedback divider, a low noise digital phase noise detector (PFD), a precision charge pump (CP) with internal loop filter and programmable clock divider to obtain a required output frequency. Output frequency is calculated by formula: FLO = (Fref*N)/(R*C). Power supply is 1.2V. Output signal is CMOS compatible.

Key features

  • TSMC CMOS 65 nm
  • Output frequency from 50 to 800 MHz
  • Reference frequency from 4 to 30 MHz
  • Power supply 1.2 V
  • CMOS output
  • Portable to other technologies (upon request)

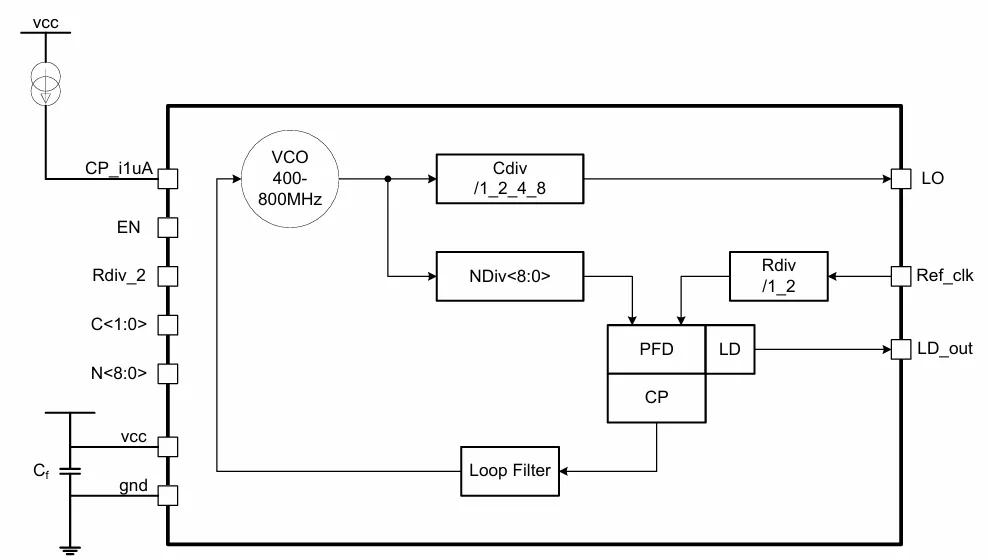

Block Diagram

065TSMC_PLL_10 block diagram

Applications

  • Digital circuit clocking

What’s Included?

  • Schematic or NetList
  • Abstract model (.lef and .lib files)
  • Layout view (optional)
  • Behavioral model (Verilog)
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
TSMC 65nm GP Silicon Proven

Specifications

Identity

Part Number
065TSMC_PLL_10
Vendor
NTLab
Type
Silicon IP

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
Contact NTLab
