Vendor: NTLab Category: ADC

5 MHz 14-bit 1-channel 300 kSPS cascade delta-sigma ADC

The block is fourth order cascade (2-2) delta-sigma ADC with 5-level quantizers in both stages.

14 Bit TSMC 65nm GP Pre-Silicon View all specifications

Overview

The block is fourth order cascade (2-2) delta-sigma ADC with 5-level quantizers in both stages. The block consists of:

  •  two delta-sigma modulators second order, coupled in series
  •  clock generator
  •  bias current source
  •  CLA-, DWA-, BiDWA-correction of capacitors mismatch
  •  digital filter

ADC is designed for TSMC CMOS 65 nm technology using 6 levels of metal wiring.

Key features

  • TSMC CMOS 65 nm
  • Cascade (2-2) delta-sigma ADC
  • 1.2 V supply voltage
  • Input differential signal range – 0.64 V
  • Build-in reference voltage source (0.6 V ± 0.2 V)

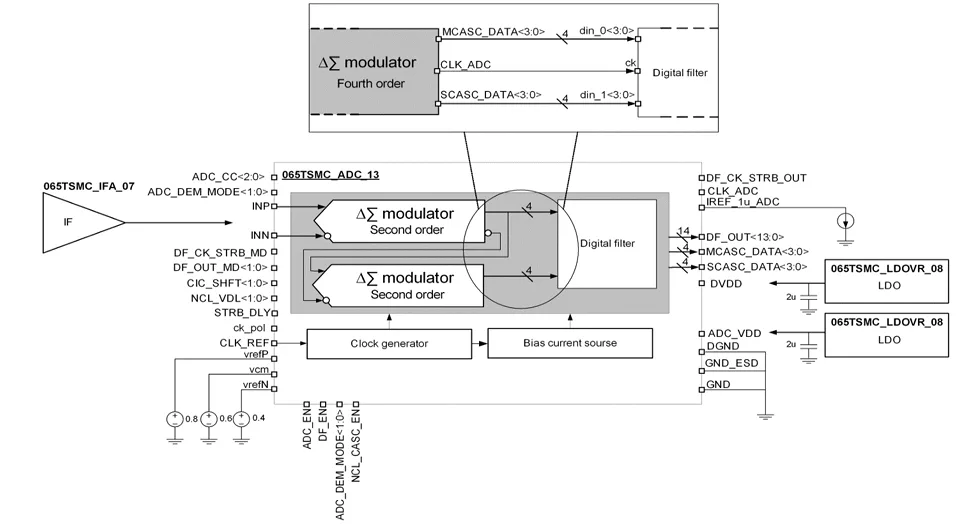

Block Diagram

065TSMC_ADC_13 block diagram

Applications

  • Analog to digital conversion of the signal
  • Receivers, transmitters, transceivers
  • Measurement environment
  • Medicine environment

What’s Included?

  • Schematic or NetList
  • Abstract view (.lef and .lib files)
  • Layout (optional)
  • Verilog behavior model
  • Extracted view (optional)
  • GDSII
  • DRC, LVS, antenna report
  • Test bench with saved configurations (optional)
  • Documentation

Silicon Options

Foundry Node Process Maturity
TSMC 65nm GP Pre-Silicon

Specifications

Identity

Part Number
065TSMC_ADC_13
Vendor
NTLab
Type
Silicon IP

Analog

Resolution bits
14 Bit

Files

Product Sheet Download

Note: some files may require an NDA depending on provider policy.

Provider

NTLab
HQ: Lithuania
